DURO 8093 Image 1

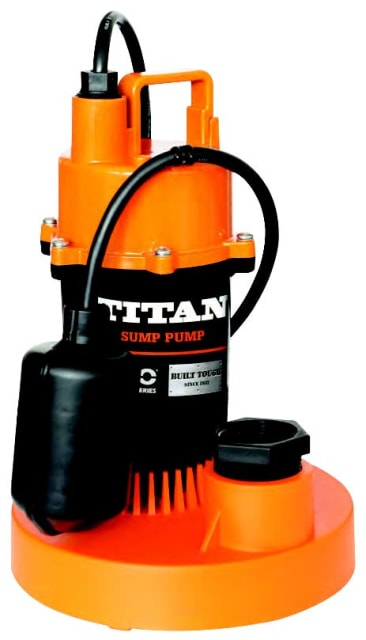

DURO 8093 1/3 HP SUB SUMP PUMP (DSB250)

MFR Part #: 8093
SKU #: 1030657
Brand: Canature WaterGroup | Duro®
UPC: 400004121860
TITAN Duro® Professional Series DSB250 8093 Submersible Sump Pump With Tethered Float Switch, 115 V, 4 A, 1/3 hp
For under sink draining, dishwashers and washing machines

TITAN Submersible Sump Pump, Series: Professional, Model: DSB250, 115 V, 4 A, 60 Hz, 1/3 hp, 3450 rpm Speed, 53.3 gpm Flow Rate, 1-1/2 in, 1-1/4 in Discharge, 10 ft Cord, 23 ft Maximum Feet of Head, NSK Ball Bearing, 30 to 140 deg F, Thermoplastic Impeller, Stainless Steel, 11 in H x 7-3/4 in Dia

Titan sump pumps provide the performance, value and simplicity you need for your home, farm, cottage or business count on WaterGroup quality and engineering for long-lasting efficiency. The Titan line is designed for quick and simple installation, easy maintenance and smooth operation. These pump products offer versatility and performance, with (6) submersible sump pumps, one column sump pump and one package system. All pumps come with a 2 years guarantee. The minimum operating temperature for all pumps is 0 deg C and the maximum operating temperature for all pumps is 60 deg C.

Product Details

TITAN Submersible Sump Pump, Series: Professional, Model: DSB250, 115 V, 4 A, 60 Hz, 1/3 hp, 3450 rpm Speed, 53.3 gpm Flow Rate, 1-1/2 in, 1-1/4 in Discharge, 10 ft Cord, 23 ft Maximum Feet of Head, NSK Ball Bearing, 30 to 140 deg F, Thermoplastic Impeller, Stainless Steel, 11 in H x 7-3/4 in Dia

Titan sump pumps provide the performance, value and simplicity you need for your home, farm, cottage or business count on WaterGroup quality and engineering for long-lasting efficiency. The Titan line is designed for quick and simple installation, easy maintenance and smooth operation. These pump products offer versatility and performance, with (6) submersible sump pumps, one column sump pump and one package system. All pumps come with a 2 years guarantee. The minimum operating temperature for all pumps is 0 deg C and the maximum operating temperature for all pumps is 60 deg C.

Attributes

Amperage Rating4 A
Bearing TypeNSK Ball
Cord Size10 ft
Dimensions11 in H x 7-3/4 in Dia
Discharge Size1-1/2 in, 1-1/4 in
Flow Rate53.3 gpm
Frequency Rating60 Hz
Horsepower1/3 hp
Impeller MaterialThermoplastic
MaterialStainless Steel
Maximum Feet of Head23 ft
ModelDSB250
SeriesDuro® Professional
Speed Rating3450 rpm
Temperature Rating30 to 140 deg F
Voltage Rating115 V

Features

  • Aluminum die-casting and engineered thermoplastic for impact and corrosion resistance
  • Stainless steel hardware for long-lasting durability
  • Screened top inlet prevents pieces of debris larger than the pump can handle from entering and damaging the impeller
  • Glass filled thermoplastic vortex impeller designed for high lift and flow capacity
  • Carbon/ceramic mechanical seals and lip seals to ensure positive protection from water and oil leakage
  • Upper and lower NSK ball bearings for improved pump performance and extended operating life
  • Piggyback tethered or vertical float switches provide great versatility for simple installations and serviceability
  • 1-1/2 or 1-1/4 in NPT discharge
  • 10 ft power cord with 3-prong adapter, plugs into a wall outlet for simple solder-less wiring connection
  • Lift handle
  • Oil-filled housing
  • Built-in thermal overload switch
  • Inlet screen
  • Permanent split starting capacitor
  • Treated aluminum die-casting and engineered thermoplastic
