LITTLE GIANT 621815 BE-S50
MFR Part #:Â 621815
SKU #:Â 1154247
Brand: Little Giant®
UPC:Â 010121126459

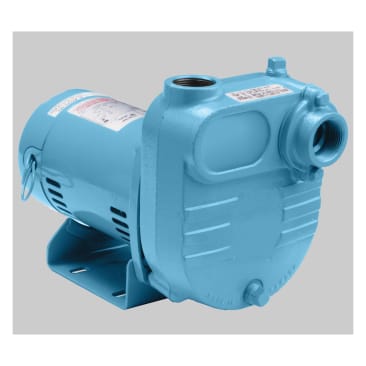

Little Giant® 621815 BE Series Effluent Pump, 45 gpm Max Flow, 20 ft Rated Head, Non-Automatic, 50 ft Max Head, 115/230 V, 1 ph
3 Years
Cast Iron Motor
For dewatering, flood irrigation, livestock watering and pumping septic tanks to the leach field applications
CSA Certified
Product Details
Attributes
Features
Resources
Little Giant® Effluent Pump, Series: BE Series, 45 gpm, 20 ft, Non-Automatic, 1-1/4 in FNPT Outlet, 50 ft Maximum Head, 45 ft Maximum Suction Lift, 1/2 hp, 115/230 V, 84/4.8 A, 60 Hz, 1 ph, 21.6 psi Maximum, Cast Iron Semi-Open Impeller, Ball Bearing, 15.3 in L x 7.6 in W x 10 in H, Import
Country Of Origin:
MX, Mexico
Horsepower:
1/2 hp
Maximum Flow Rate:
45 gpm
Maximum Head:
50 ft
Outlet Size:
1-1/4 in FNPT
Amperage Rating:
84/4.8 A
Automatic/Non Automatic:
Non-Automatic
Bearing Type:
Ball
Dimensions:
15.3 in L x 7.6 in W x 10 in H
Domestic/Import:
Import
Frequency Rating:
60 Hz
Impeller Type:
Cast Iron Semi-Open
Maximum Pressure:
21.6 psi
Maximum Suction Lift:
45 ft
Phase:
1
Rated Head:
20 ft
Series:
BE Series
Voltage Rating:
115/230 V
- Higher than NEMA service factor dual compartment motor
- Handles solids up to 1/4 in Dia
- Designed for continuous duty
- Built-in check valve
- Handles solids up to 3/4 in Dia
Product Details
Little Giant® Effluent Pump, Series: BE Series, 45 gpm, 20 ft, Non-Automatic, 1-1/4 in FNPT Outlet, 50 ft Maximum Head, 45 ft Maximum Suction Lift, 1/2 hp, 115/230 V, 84/4.8 A, 60 Hz, 1 ph, 21.6 psi Maximum, Cast Iron Semi-Open Impeller, Ball Bearing, 15.3 in L x 7.6 in W x 10 in H, Import
Attributes
Country Of Origin:Â MX, Mexico
Horsepower:Â 1/2 hp
Maximum Flow Rate:Â 45 gpm
Maximum Head:Â 50 ft
Outlet Size:Â 1-1/4 in FNPT
Amperage Rating:Â 84/4.8 A
Automatic/Non Automatic:Â Non-Automatic
Bearing Type:Â Ball
Dimensions:Â 15.3 in L x 7.6 in W x 10 in H
Domestic/Import:Â Import
Frequency Rating:Â 60 Hz
Impeller Type:Â Cast Iron Semi-Open
Maximum Pressure:Â 21.6 psi
Maximum Suction Lift:Â 45 ft
Phase:Â 1
Rated Head:Â 20 ft
Series:Â BE Series
Voltage Rating:Â 115/230 V
Features
- Higher than NEMA service factor dual compartment motor
- Handles solids up to 1/4 in Dia
- Designed for continuous duty
- Built-in check valve
- Handles solids up to 3/4 in Dia
