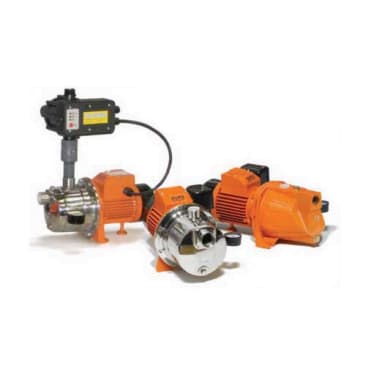

DURO 6064 Image 1

DURO 6064 DSW 750 3/4HP 115/230V SS SW JET PUMP

MFR Part #: 6064
SKU #: 1053967
Brand: Canature WaterGroup | Duro®
UPC: 400004948788
Canature™ WaterGroup DUROJET™ DSW Series 6064 Shallow Well Jet Pump, 3 to 18 gpm, 115/230 V, 3/4 hp, 5 to 25 ft Max
0 to 100 psi Pressure Gauge
CSA Certified

Canature™ WaterGroup Shallow Well Jet Pump, DSW Series, Model: DSW750SS, 1 in Suction, 1 in Discharge, 3 to 18 gpm Flow Rate, 115/230 V, 3/4 hp, Maximum Feet of Head: 5 to 25 ft, Stainless Steel Body, Aluminum

These high capacity pumps are designed especially for use on shallow well applications where wells are 25 ft deep or less. They are excellent for the farm or cottage, either as a new installation or for an existing system. Models DSW500, 750 and 1000 have a cast iron pump body and models DSW500SS, 750SS and 1000SS have a stainless steel pump body.

Product Details

Canature™ WaterGroup Shallow Well Jet Pump, DSW Series, Model: DSW750SS, 1 in Suction, 1 in Discharge, 3 to 18 gpm Flow Rate, 115/230 V, 3/4 hp, Maximum Feet of Head: 5 to 25 ft, Stainless Steel Body, Aluminum

These high capacity pumps are designed especially for use on shallow well applications where wells are 25 ft deep or less. They are excellent for the farm or cottage, either as a new installation or for an existing system. Models DSW500, 750 and 1000 have a cast iron pump body and models DSW500SS, 750SS and 1000SS have a stainless steel pump body.

Attributes

Body Material: Stainless Steel
Discharge Size: 1 in
Flow Rate: 3 to 18 gpm
HP Rating: 3/4 hp
Material: Aluminum
Maximum Feet of Head: 5 to 25 ft
Model: DSW750SS
Series: DSW Series
Suction Size: 1 in
Voltage Rating: 115/230 V

Features

  • Aluminum die-cast motor housing
  • Permanent split capacitor motor with high starting torque
  • Built-in thermal overload protection
  • Quick change dual voltage switch (115/230 V)
  • Adjustable differential pressure switch
  • Cast iron or stainless steel pump body with front drain plug
  • Stainless steel motor shaft and seal plate
  • Carbon/ceramic mechanical seal
  • Self-priming (after housing filled)
  • 1 in NPT suction on model DSW500, 750, 1000, DSW500SS and 1-1/4 in NPT on model DSW750SS and 1000SS
  • 1 in NPT discharge
  • Full color packaging
