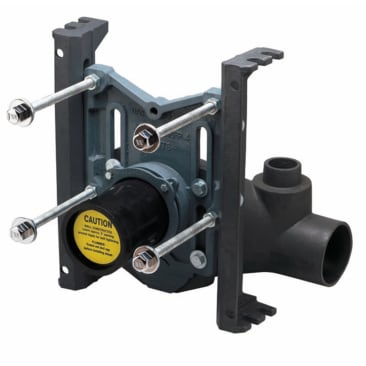

WATTS ISCA-101-R Image 1

WATTS ISCA-101-R SINGLE ADJ HORIZONTAL CLOSET CARRIER RH

MFR Part #: ISCA-101-R
SKU #: 1061003
Brand: WATTS®
UPC: 098268051780
WATTS® ISCA-101-R Adjustable Water Closet Carrier, 4 in No Hub Waste and 2 in No Hub Vent 500 lb Static Load, Cast Iron, Import
Limited
ASME A112.6.1M

WATTS® Water Closet Carrier, Adjustable, Series: ISCA-101, 4 in No Hub Waste and 2 in No Hub Vent 500 lb Static Load, Cast Iron, Import

This Watts Drains industry standard single, horizontal right, adjustable water closet carrier features an epoxy coated cast iron fitting, 4 inch waste and 2 inch vent no hub connections, epoxy coated cast iron patented compression seal faceplate assembly, epoxy coated cast iron foot supports embossed with incremental standard and wheelchair heights for easy adjustment, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. This carrier complies with ASME requirements of up to a 500 pound static load.

Product Details

WATTS® Water Closet Carrier, Adjustable, Series: ISCA-101, 4 in No Hub Waste and 2 in No Hub Vent 500 lb Static Load, Cast Iron, Import

This Watts Drains industry standard single, horizontal right, adjustable water closet carrier features an epoxy coated cast iron fitting, 4 inch waste and 2 inch vent no hub connections, epoxy coated cast iron patented compression seal faceplate assembly, epoxy coated cast iron foot supports embossed with incremental standard and wheelchair heights for easy adjustment, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. This carrier complies with ASME requirements of up to a 500 pound static load.

Attributes

Type: Adjustable
Domestic/Import: Import
Material: Cast Iron
Series: ISCA-101
Specifications: 4 in No Hub Waste and 2 in No Hub Vent 500 lb Static Load

Features

  • Floor mounted
  • Single horizontal right hand
  • Anchor legs to concrete floor with minimum 1/2 in anchor bolts
