AM STD 6515001.020 WASHBROOK BACK SPUD UR WHITE

MFR Part #: 6515001.02
SKU #: 1085212
Brand: American Standard
UPC: 033056852958

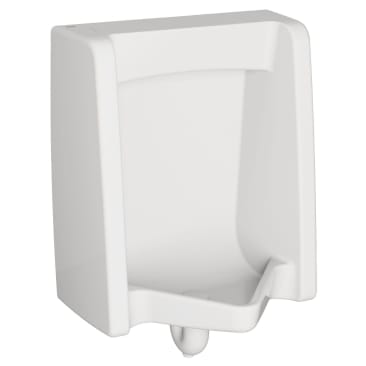

American Standard 6515001.020 Universal Urinal, Washbrook, Elongated Bowl, 0.125/1 gpf Flush Rate, Rear Spud, Wall Mount, White, Import
(2) Wall Hangers
ADA Compliant | ASME A112.19.2-2008 | CSA B45.1-08 | WaterSense Certified

American Standard, 6515001.020, Urinal, Universal, Washbrook Collection, 0.125/1 gpf Flush, Elongated Bowl, Rear Spud Location, 3/4 in Inlet Spud, 2 in NPTF Outlet Tap, 80 psi Working, Wall Mounting, Vitreous China, White, 18-7/8 in W x 14-1/8 in D x 26-1/8 in H Dimensions, Import

This ultra high efficiency, low-consumption universal urinal operates in the range of 0.125 to 1 gpf. Choose a manual or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.

Product Details

American Standard, 6515001.020, Urinal, Universal, Washbrook Collection, 0.125/1 gpf Flush, Elongated Bowl, Rear Spud Location, 3/4 in Inlet Spud, 2 in NPTF Outlet Tap, 80 psi Working, Wall Mounting, Vitreous China, White, 18-7/8 in W x 14-1/8 in D x 26-1/8 in H Dimensions, Import

This ultra high efficiency, low-consumption universal urinal operates in the range of 0.125 to 1 gpf. Choose a manual or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, plus extended sides for privacy.

Attributes

Bowl Shape: Elongated
Collection: Washbrook
Country Of Origin: China
Dimensions: 18-7/8 in W x 14-1/8 in D x 26-1/8 in H
Domestic/Import: Import
Finish/Color: White
Flush Rate: 0.125/1 gpf
Height: 26-1/8 in
Inlet Spud Size: 3/4 in
Length: 14-1/8 in
Material: Vitreous China
Mounting Type: Wall
Outlet Tap Size: 2 in NPTF
Spud Location: Rear
Type: Universal
Width: 18-7/8 in
Working Pressure: 80 psi

Features

  • Ultra-high efficiency low consumption, operates in the range of 0.125 to 1 gpf
  • Flushing rim
  • Elongated 14 in rim from finished wall
  • Washout flush action
  • Extended sides for privacy
  • Fixture only

Resources

Instruction/Installation Manual
Specification Sheet
