AM STD 6517001EC.020 Image 1

AM STD 6517001EC.020 GREENBROOK BACK SPUD URINAL WHITE

MFR Part #: 6517001EC.020
SKU #: 1264916
Brand: American Standard
UPC: 791556111486

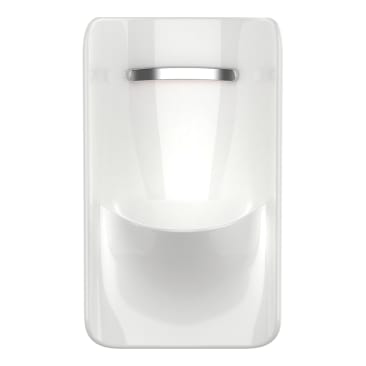

American Standard 6517001EC.020 Greenbrook® High Efficiency Urinal, 0.125 to 0.5 gpf Flush Rate, Back Spud, White
Limited
(2) Wall Hangers and Removable Strainer
ADA Compliant | ASME A112.19.2 | CSA B45.1 | CALGreen Compliant | EverClean® Certified

American Standard Urinal, High Efficiency, Greenbrook® Collection, 0.125 to 0.5 gpf Flush, Back Spud Location, 3/4 in Inlet Spud, 80 psi Static/20 psi at Valve Working, Vitreous China, White, 14-7/8 in L x 16-3/16 in W x 27-7/16 in H Dimensions

The Greenbrook® urinal from American Standard is defined by sleek curves designed for practicality and a clean, modern aesthetic. Optimized surface contours and water flushing spreader ensure a thorough rinse and superior splash protection. Large, high-efficiency design operates in the range of 0.125 to 0.50 gpf/0.47 to 1.9 Lpf for exceptional performance and water savings.

Product Details

American Standard Urinal, High Efficiency, Greenbrook® Collection, 0.125 to 0.5 gpf Flush, Back Spud Location, 3/4 in Inlet Spud, 80 psi Static/20 psi at Valve Working, Vitreous China, White, 14-7/8 in L x 16-3/16 in W x 27-7/16 in H Dimensions

The Greenbrook® urinal from American Standard is defined by sleek curves designed for practicality and a clean, modern aesthetic. Optimized surface contours and water flushing spreader ensure a thorough rinse and superior splash protection. Large, high-efficiency design operates in the range of 0.125 to 0.50 gpf/0.47 to 1.9 Lpf for exceptional performance and water savings.

Attributes

Finish/Color: White
Flush Rate: 0.125 to 0.5 gpf
Collection: Greenbrook®
Dimensions: 14-7/8 in L x 16-3/16 in W x 27-7/16 in H
Inlet Spud Size: 3/4 in
Material: Vitreous China
Spud Location: Rear
Type: High Efficiency
Working Pressure: 80 psi Static/20 psi at Valve

Features

  • Highly aesthetic vitreous china urinal with large footprint
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • 3/4 in inlet spud with 2 in outlet spud
  • Permanent EverClean® surface inhibits the growth of stain and odor causing bacteria
