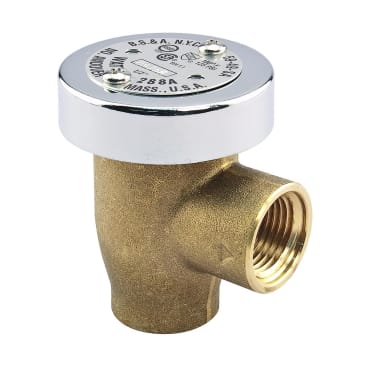

WATTS 0792037 Image 1

WATTS 0792037 LF288A 3/8 VACUUM BREAKER ROUGH BRONZE

MFR Part #: 0792037
SKU #: 0463005
Brand: WATTS®
UPC: 098268434231
WATTS® 0792037 LF288A Anti-Siphon Vacuum Breaker, 3/8 in Nominal, FNPT End Style, Brass Body, Vacuum Breaker, Domestic
1 Year Limited
Low Flow and Non-Continuous Hot or Cold Water Health Hazard Installations Such as on Laboratory Equipment
ANSI A112.1.1|ASSE 1001|cCSAus B64.1.1|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

WATTS®, 0792037, Vacuum Breaker, Anti-Siphon, Series: LF288A, 3/8 in Nominal, FNPT End Style, 125 psi Pressure, 180 deg F, Vacuum Breaker Backflow, Media: Hot/Cold Water, Brass Body, 1-3/4 in L Dimensions, Domestic

Series LF288A Lead Free Hot or Cold Water Anti-Siphon Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of Lead Free brass body construction (LF288A) or chrome finish (LF288AC), chemical resistant silicone seat disc and an atmospheric vent to prevent spilling. Series LF288A has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment. Maximum Pressure:125 psi (8.6 bar).

Product Details

WATTS®, 0792037, Vacuum Breaker, Anti-Siphon, Series: LF288A, 3/8 in Nominal, FNPT End Style, 125 psi Pressure, 180 deg F, Vacuum Breaker Backflow, Media: Hot/Cold Water, Brass Body, 1-3/4 in L Dimensions, Domestic

Series LF288A Lead Free Hot or Cold Water Anti-Siphon Vacuum Breakers prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of Lead Free brass body construction (LF288A) or chrome finish (LF288AC), chemical resistant silicone seat disc and an atmospheric vent to prevent spilling. Series LF288A has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard installations such as on laboratory equipment. Maximum Pressure:125 psi (8.6 bar).

Attributes

Backflow Type: Vacuum Breaker
Country Of Origin: US
Nominal Size: 3/8 in
Type: Anti-Siphon
Body Material: Brass
Dimensions: 1-3/4 in L
Domestic/Import: Domestic
End Style: FNPT
Media: Hot/Cold Water
Pressure Rating: 125 psi
Series: LF288A
Temperature Rating: 180 deg F

Features

  • Female NPT inlet and outlet
  • Light weight disc assembly prevents spilling under all rates of flow
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Full size orifice for maximum flow
  • Lead free construction

Resources

Instruction/Installation Manual
