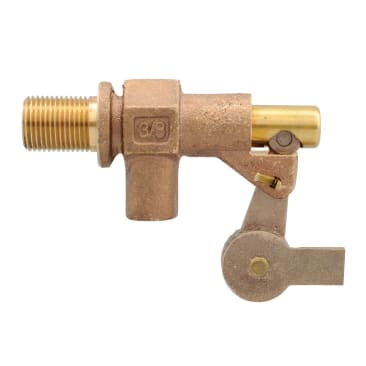

WATTS 0780002 Image 1

WATTS 0780002 375-12 3/8 FLOAT VALVE

MFR Part #: 0780002
SKU #: 1243846
Brand: WATTS®
UPC: 098268090857
WATTS® 0780002 Heavy Duty Mechanical Float Valve, 3/8 in Nominal, Flange x MNPT End Style, 14 to 21 gpm Flow Rate, 165 psi Pressure, Import
1 year
Commercial, Industrial and Agricultural
US Green Building Council Member|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

WATTS® Mechanical Float Valve, Heavy Duty, 3/8 in Nominal, Flange x MNPT, 14 to 21 gpm, 165 psi, Bronze Body, Wall Mount, 180 deg F, 3 in L x 1-1/4 in H, Import

This heavy-duty mechanical float valve, 3/8 in, is used in industrial, commercial and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It has a bronze body construction with a machine flange on the inlet side and male straight-pipe threaded for locknut on the outlet side. It has serrated arms for easy adjustment of water level, bronze long and short arms, no-jam single lever action and replaceable seals. It is ideal for use in air conditioning, refrigeration and irrigation systems. Maximum pressure is 165 psi.

Product Details

WATTS® Mechanical Float Valve, Heavy Duty, 3/8 in Nominal, Flange x MNPT, 14 to 21 gpm, 165 psi, Bronze Body, Wall Mount, 180 deg F, 3 in L x 1-1/4 in H, Import

This heavy-duty mechanical float valve, 3/8 in, is used in industrial, commercial and agricultural applications for controlling high capacity water flow and can be tank wall-mounted. It has a bronze body construction with a machine flange on the inlet side and male straight-pipe threaded for locknut on the outlet side. It has serrated arms for easy adjustment of water level, bronze long and short arms, no-jam single lever action and replaceable seals. It is ideal for use in air conditioning, refrigeration and irrigation systems. Maximum pressure is 165 psi.

Attributes

Country Of Origin: MX, Mexico
Flow Rate: 14 to 21 gpm
Nominal Size: 3/8 in
Body Material: Bronze
Dimensions: 3 in L x 1-1/4 in H
Domestic/Import: Import
End Style: Flange x MNPT
Mounting Type: Wall
Pressure Rating: 165 psi
Temperature Rating: 180 deg F
Type: Heavy Duty

Features

  • Pipe-threaded for pipe connections and straight-pipe threaded for locknut
  • Machined flange for support against tank wall
  • Serrated arms for quick easy adjustment of water level
  • No jam single lever action
  • Replaceable seals

Resources

Specification Sheet
