KITZ 053-51218 3/8 IP 150# BRZ GATE VLV 42
MFR Part #:Â 42T-038
SKU #:Â 1009097
Brand:Â KITZ
UPC:Â 400002212843

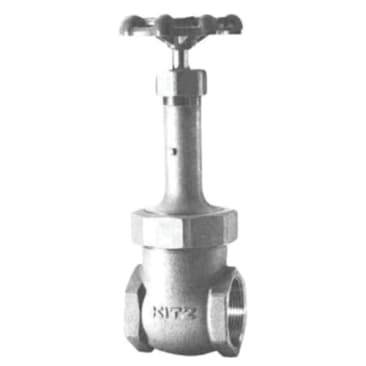

KITZ 42T-038 Gate Valve, 3/8 in, FNPT, Bronze, 300 psi
ASME B1.20.1 | MSS-SP-80 Type 2
Product Details
Attributes
Features
Resources
KITZ Gate Valve, 3/8 in Nominal, FNPT Connection, 300 psi, Pressure Class: 150, Gas, Oil, Steam, Water Media, 1.69 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, Bronze Body, Bronze Stem, Bronze Disc, PTFE Packing, Zinc Handle, Hand Wheel Operator, 8 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, ASTM B86
Body Material:
Bronze
Connection Type:
FNPT
Nominal Size:
3/8 in
Pressure Class:
150
Pressure Rating:
300 psi
Disc Material:
Bronze
Flow Coefficient (Cv):
8 Cv
Handle Material:
Zinc
Inlet to Outlet Length:
1.69 in
Material Standard:
ASTM B62, ASTM B86
Media:
Gas, Oil, Steam, Water
Model:
AK150LUT
Operator Type:
Hand Wheel
Packing Material:
PTFE
Stem Material:
Bronze
Temperature Rating:
406 deg F
Top to Inlet Center:
4-1/4 in
- Inside screw rising stem
- Union bonnet
- Solid wedge disc
Product Details
KITZ Gate Valve, 3/8 in Nominal, FNPT Connection, 300 psi, Pressure Class: 150, Gas, Oil, Steam, Water Media, 1.69 in Inlet to Outlet Length, 4-1/4 in Top to Inlet Center, Bronze Body, Bronze Stem, Bronze Disc, PTFE Packing, Zinc Handle, Hand Wheel Operator, 8 Cv Flow Coefficient (Cv), 406 deg F, Material Standard: ASTM B62, ASTM B86
Attributes
Body Material:Â Bronze
Connection Type:Â FNPT
Nominal Size:Â 3/8 in
Pressure Class:Â 150
Pressure Rating:Â 300 psi
Disc Material:Â Bronze
Flow Coefficient (Cv):Â 8 Cv
Handle Material:Â Zinc
Inlet to Outlet Length:Â 1.69 in
Material Standard:Â ASTM B62, ASTM B86
Media:Â Gas, Oil, Steam, Water
Model:Â AK150LUT
Operator Type:Â Hand Wheel
Packing Material:Â PTFE
Stem Material:Â Bronze
Temperature Rating:Â 406 deg F
Top to Inlet Center:Â 4-1/4 in
Features
- Inside screw rising stem
- Union bonnet
- Solid wedge disc
