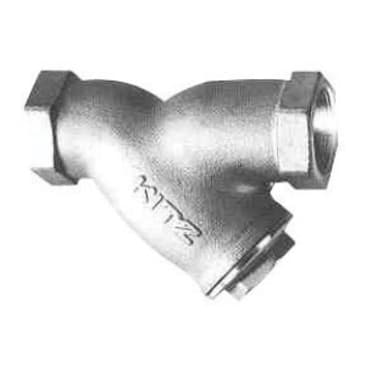

KITZ 053-68006 1/2 IP BRZ Y-STRAINER 15
MFR Part #:Â 15-012
SKU #:Â 0575060
Brand:Â KITZ
UPC:Â 747066001236
KITZ 15 Series 15-012 Strainer, 1/2 in Nominal, FNPT
ASME B1.20.1
Product Details
Attributes
Features
Resources
KITZ Strainer, 15 Series, 1/2 in Nominal, FNPT Connection, Stainless Steel Filter, Bronze Housing, 3.15 in L x 1.92 in H, 150 to 300 psi, 366 to 406 deg F, Additional Information: 304 Stainless Steel Screen, Non-Asbestos Gasket
Additional Information:
304 Stainless Steel Screen, Non-Asbestos Gasket
Connection Type:
FNPT
Dimensions:
3.15 in L x 1.92 in H
Filter Material:
Stainless Steel
Housing Material:
Bronze
Material:
Bronze
Nominal Size:
1/2 in
Pressure Rating:
150 to 300 psi
Series:
15 Series
Temperature Rating:
366 to 406 deg F
- Screwed cap
- Screwed cap (tapped drain)
- Forged brass cap, 304 stainless steel screen
Product Details
KITZ Strainer, 15 Series, 1/2 in Nominal, FNPT Connection, Stainless Steel Filter, Bronze Housing, 3.15 in L x 1.92 in H, 150 to 300 psi, 366 to 406 deg F, Additional Information: 304 Stainless Steel Screen, Non-Asbestos Gasket
Attributes
Additional Information:Â 304 Stainless Steel Screen, Non-Asbestos Gasket
Connection Type:Â FNPT
Dimensions:Â 3.15 in L x 1.92 in H
Filter Material:Â Stainless Steel
Housing Material:Â Bronze
Material:Â Bronze
Nominal Size:Â 1/2 in
Pressure Rating:Â 150 to 300 psi
Series:Â 15 Series
Temperature Rating:Â 366 to 406 deg F
Features
- Screwed cap
- Screwed cap (tapped drain)
- Forged brass cap, 304 stainless steel screen
