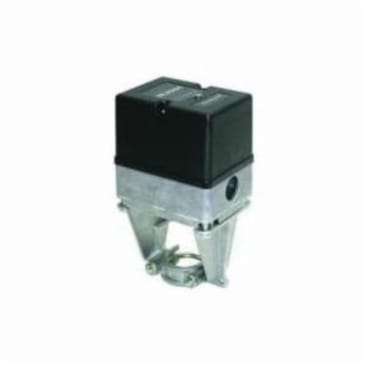

HONEYWELL ML6984A4000 ACTUATOR
Product Details
Attributes
Features
Resources
Honeywell Valve Actuator, 1/2 to 1 in Stroke, 6 VA Driving/12 VA Holding Power Consumption, 63 s Timing, 24 VAC/28 VDC Supply, Screw Terminal Electrical Connections, 32 to 130 deg F, Plastic Body, For Use With: V5011/13, VGF21 and VGF22 Gas Valve, Import
The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two-way and V5013 three-way globe valves, providing linear stem operation between 1/2 in (13 mm) and 1 in (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off) or SP3T Series 60 (floating) electro-mechanical and electronic controllers. ML7984 is for use with Series 70 0-10 VDC, 2-10 VDC, 4-20 mA; electronic Series 90 "SuperMod"; and 135 ohm modulating controllers.
- Allows the use of one common transformer power supply for multiple actuators and controllers
- Self-contained motorized valve linkage
- Linkage self-adjusts to valve stroke of 1/2 to 1 in
- Multi-pose mounting
- Strong valve seat closing force 160 lbf (710 N)
- Compact design for easy installation in confined area
- One device for either 24 VAC or 28 VDC power supply application
- Electronic current sensing provides internal protection and positive full closing force
- Field addable position feedback/auxiliary switch module available (5-wire control wiring only)
- ML6984 models are compatible with 3 wire control systems
Product Details
Honeywell Valve Actuator, 1/2 to 1 in Stroke, 6 VA Driving/12 VA Holding Power Consumption, 63 s Timing, 24 VAC/28 VDC Supply, Screw Terminal Electrical Connections, 32 to 130 deg F, Plastic Body, For Use With: V5011/13, VGF21 and VGF22 Gas Valve, Import
The ML6984 and ML7984 are self-contained, self-adjusting, motorized valve actuators that mount directly onto V5011 two-way and V5013 three-way globe valves, providing linear stem operation between 1/2 in (13 mm) and 1 in (25 mm). ML6984 is for use with low voltage SPDT Series 20, Series 60 (on-off) or SP3T Series 60 (floating) electro-mechanical and electronic controllers. ML7984 is for use with Series 70 0-10 VDC, 2-10 VDC, 4-20 mA; electronic Series 90 "SuperMod"; and 135 ohm modulating controllers.
Attributes
Features
- Allows the use of one common transformer power supply for multiple actuators and controllers
- Self-contained motorized valve linkage
- Linkage self-adjusts to valve stroke of 1/2 to 1 in
- Multi-pose mounting
- Strong valve seat closing force 160 lbf (710 N)
- Compact design for easy installation in confined area
- One device for either 24 VAC or 28 VDC power supply application
- Electronic current sensing provides internal protection and positive full closing force
- Field addable position feedback/auxiliary switch module available (5-wire control wiring only)
- ML6984 models are compatible with 3 wire control systems
