HAWS 1105 Image 1
HAWS 1105 Image 2
HAWS 1105 Image 3
HAWS 1105 Image 4
HAWS 1105 Image 5
content loaded
HAWS 1105 Image 1

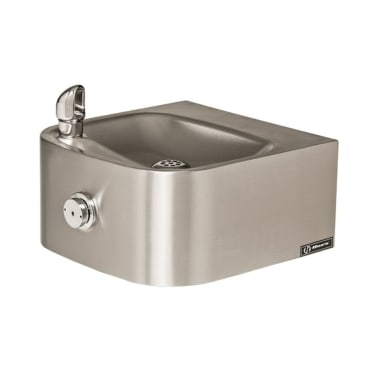

HAWS 1105 DRINKING FOUNTAIN 18GA DF STAINLESS STEEL FINISH

MFR Part #: 1105
SKU #: 1061429
Brand: Haws®
UPC: 611970315416
Haws® 1105 Drinking Fountain, 0.45 gpm Flow Rate, Push Button Operation, Non-Refrigerated Chilling, Domestic
Schools, Office Buildings and Other Locations
Buy American Act Compliant | cCSAus Certified | California Health and Safety Code 116875 (AB 1953-2006) | ANSI/NSF 61 Section 9 | PROP65: For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or

Haws® Drinking Fountain, 0.45 gpm Flow Rate, Operation: Push Button, Non-Refrigerated Chilling Option, 30 to 90 psi Pressure, Wall Mounting, 304 Stainless Steel, Satin, 12 in W x 12-1/4 in D x 9 in H, Domestic

Model 1105 wall mounted drinking fountain shall include an 18 ga 304 Stainless Steel satin finish basin, Pushbutton operated stainless steel valve with front accessible cartridge and flow adjustment, 100% lead free waterways, polished chrome brass vandal-resistant bubbler head, polished chrome brass vandal-resistant waste strainer, vandal-resistant bottom plate and 1-1/4 in IPS trap.

Product Details

Haws® Drinking Fountain, 0.45 gpm Flow Rate, Operation: Push Button, Non-Refrigerated Chilling Option, 30 to 90 psi Pressure, Wall Mounting, 304 Stainless Steel, Satin, 12 in W x 12-1/4 in D x 9 in H, Domestic

Model 1105 wall mounted drinking fountain shall include an 18 ga 304 Stainless Steel satin finish basin, Pushbutton operated stainless steel valve with front accessible cartridge and flow adjustment, 100% lead free waterways, polished chrome brass vandal-resistant bubbler head, polished chrome brass vandal-resistant waste strainer, vandal-resistant bottom plate and 1-1/4 in IPS trap.

Attributes

Chilling Option: Non-Refrigerated
Country Of Origin: US
Finish: Satin
Mounting Type: Wall
Dimensions: 12 in W x 12-1/4 in D x 9 in H
Domestic/Import: Domestic
Flow Rate: .45 gpm
Material: 304 Stainless Steel
Operation: Push Button
Pressure Rating: 30 to 90 psi

Features

  • 100% lead free waterways
  • 18 ga type 304 stainless steel design provides a well constructed sturdy fountain
  • Maintenance is made easy with front access to valve adjustment and cartridge replacement
  • Beautiful satin finish resists stains and corrosion
  • Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
  • Fully assembled
  • In-line strainer

Resources

Instruction/Installation Manual
Line Drawing
Specification Sheet
Warranty Information
