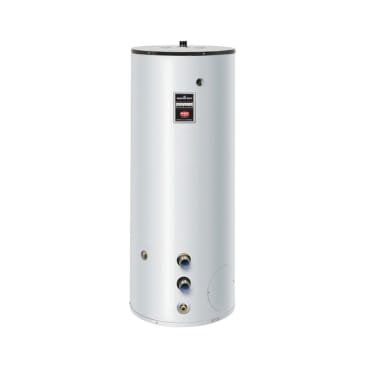

BRADFORD M3ST120R5-806 SEA-LEVEL/HIGH-ALTITUDE 119USG COMMERCIAL STORAGE TANK
MFR Part #:Â M3ST120R5
SKU #:Â 1256656
Brand: Bradford White®
UPC:Â 671632553655
Bradford White® M3ST120R5 Small Volume Commercial Jacketed Storage Tank, 119 gal Tank, 28 in Dia, 2 in NPT Rear Inlet, Domestic
5 Years Limited on Tank/1 Year Limited on Component Parts
For Boilers, Hot Water Circulation Systemsand Large Dump Volume Applications
ASME Specified | CEC Listed | CSA LLC - Low Lead Content | Massachusetts Approved | NSF 372 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Product Details
Attributes
Features
Resources
Bradford White® Commercial Jacketed Storage Tank, Small Volume, 119 gal Tank, 28 in Diameter, 2 in NPT Inlet, 150 psi Pressure, Domestic
Country Of Origin:
US
Diameter:
28 in
Domestic/Import:
Domestic
Pressure Rating:
150 psi
Tank Capacity:
119 gal
Type:
Small Volume
Inlet Size:
2 in NPT Rear
- Applications: Designed for use with boilers, hot water circulation systems and large dump volume applications
- Vitraglas® lining
- Two protective magnesium anode rods: Provide added protection against corrosion for long trouble-free service
- Heavy gauge steel automatically formed, rolled, and welded steel tank
- T and P relief valve opening (T and P not supplied) all models have special tapping on side of tank
- 3/4 in NPT aquastat fitting
- Low restriction brass drain valve
- 2 in Non-CFC foam insulation: Covers the sides and top of tank, reducing the amount of heat loss
- 2 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Designed for storage of potable water up to 180 deg F
- 300 psi (2068 kPa) test pressure
Product Details
Bradford White® Commercial Jacketed Storage Tank, Small Volume, 119 gal Tank, 28 in Diameter, 2 in NPT Inlet, 150 psi Pressure, Domestic
Attributes
Country Of Origin:Â US
Diameter:Â 28 in
Domestic/Import:Â Domestic
Pressure Rating:Â 150 psi
Tank Capacity:Â 119 gal
Type:Â Small Volume
Inlet Size:Â 2 in NPT Rear
Features
- Applications: Designed for use with boilers, hot water circulation systems and large dump volume applications
- Vitraglas® lining
- Two protective magnesium anode rods: Provide added protection against corrosion for long trouble-free service
- Heavy gauge steel automatically formed, rolled, and welded steel tank
- T and P relief valve opening (T and P not supplied) all models have special tapping on side of tank
- 3/4 in NPT aquastat fitting
- Low restriction brass drain valve
- 2 in Non-CFC foam insulation: Covers the sides and top of tank, reducing the amount of heat loss
- 2 in NPT factory installed true dielectric fittings extend water heater life and eases installation
- Designed for storage of potable water up to 180 deg F
- 300 psi (2068 kPa) test pressure
