ZURN P6-DGE 6 X 20IN DUCTILE GRATE CLASS E 30100684
MFR Part #: P6-DGE
SKU #: 1113700
Brand: Zurn®
UPC: 670240666931

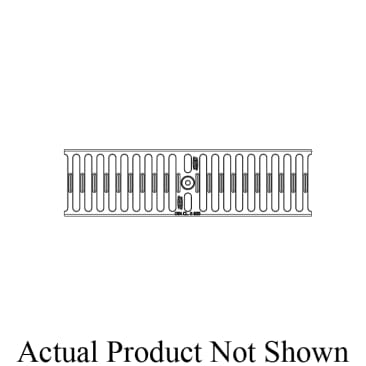

Zurn® P6-DGE Class E Special Duty Grate, Ductile Iron
Dynamic Loads
ANSI Specified | ASTM A536 Grade 80-55-06
Product Details
Attributes
Resources
Zurn® Grate, Class E Special Duty, Ductile Iron, 20 in L x 3-5/8 in W x 1-3/8 in D
20 x 5-3/8 in ductile iron slotted grate weighing 6.4 lb per linear ft. The grate has an open area of 28.2 sq-in per linear ft. Grate conforms to DIN rating of E, ANSI rating of special-duty, H-20 load rated, FAA load rated and ASTM A536 grade 80-55-06.
Dimensions:
20 in L x 3-5/8 in W x 1-3/8 in D
Material:
Ductile Iron
Type:
Class E Special Duty
Product Details
Zurn® Grate, Class E Special Duty, Ductile Iron, 20 in L x 3-5/8 in W x 1-3/8 in D
20 x 5-3/8 in ductile iron slotted grate weighing 6.4 lb per linear ft. The grate has an open area of 28.2 sq-in per linear ft. Grate conforms to DIN rating of E, ANSI rating of special-duty, H-20 load rated, FAA load rated and ASTM A536 grade 80-55-06.
Attributes
Dimensions: 20 in L x 3-5/8 in W x 1-3/8 in D
Material: Ductile Iron
Type: Class E Special Duty
