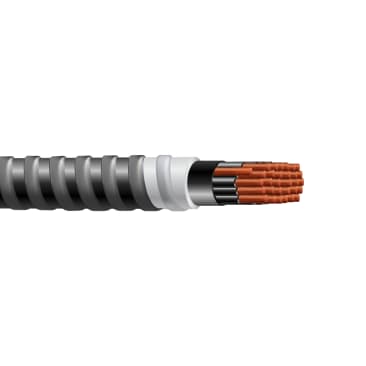

TECK 30C 14 (7) STRAND COPPER 600V BLACK
MFR Part #:Â 30C 14
SKU #:Â 1123915
Brand:Â Approved Vendor
UPC:Â 400008716017
U306671 Cable, 600 V, 30 -Conductor, 14 AWG Conductor, Stranded, Copper Conductor
For pulp, paper, chemical, petroleum and other primary and secondary manufacturing industries, apartment buildings and commercial complexes and all hazardous locations
Product Details
Attributes
Cable, 30 Conductors, 600 V, 15 A, 14 AWG Conductor, Solid/Stranded: Stranded, Copper Conductor, 7 Strands, PVC Insulation, PVC, 0.03 in Insulation Thickness, 0.08 in Jacket Thickness, Black Insulation, Black, -40 to 90 deg C, 1.429 in Outside Dia, Additional Information: Aluminum Armor Shield
Amperage Rating:
15 A
Conductor Material:
Copper
Conductor Size:
14 AWG
Insulation Color:
Black
Insulation Material:
PVC
Insulation Thickness:
.03 in
Jacket Color:
Black
Jacket Material:
PVC
Jacket Thickness:
.08 in
Number of Conductors:
30
Outside Diameter:
1.429 in
Solid/Stranded:
Stranded
Strands:
7
Temperature Rating:
-40 to 90 deg C
Voltage Rating:
600 V
Additional Information:
Aluminum Armor Shield
Product Details
Cable, 30 Conductors, 600 V, 15 A, 14 AWG Conductor, Solid/Stranded: Stranded, Copper Conductor, 7 Strands, PVC Insulation, PVC, 0.03 in Insulation Thickness, 0.08 in Jacket Thickness, Black Insulation, Black, -40 to 90 deg C, 1.429 in Outside Dia, Additional Information: Aluminum Armor Shield
Attributes
Amperage Rating:Â 15 A
Conductor Material:Â Copper
Conductor Size:Â 14 AWG
Insulation Color:Â Black
Insulation Material:Â PVC
Insulation Thickness:Â .03 in
Jacket Color:Â Black
Jacket Material:Â PVC
Jacket Thickness:Â .08 in
Number of Conductors:Â 30
Outside Diameter:Â 1.429 in
Solid/Stranded:Â Stranded
Strands:Â 7
Temperature Rating:Â -40 to 90 deg C
Voltage Rating:Â 600 V
Additional Information:Â Aluminum Armor Shield
