ABB HSB170-82-3 Image 1
COO Canada

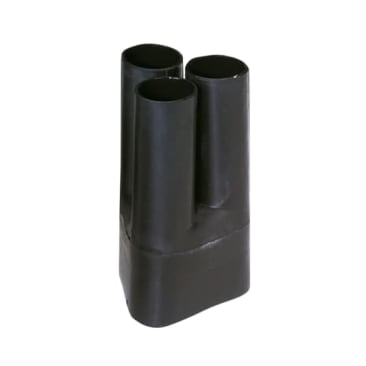

ABB HSB170-82-3 #1-600MCM 3 CONDUCTOR HEAT SHRINK BOOT

MFR Part #: HSB170-82-3
SKU #: 1262202
Brand: ABB
UPC: 786210872179
Shrink-Kon® HSB170-82-3 HSB Heavy Wall Heat Shrinkable, 600 VAC, 2.2 in ID Expanded, 1.2 in ID Recovered, 3:1 Shrink Ratio, Polyolefin
For 2, 3 and 4-way cable breakout and heavy wall heat shrinkable tubing applications
ESI 09-11

Shrink-Kon®, HSB170-82-3, Heat Shrinkable, Heavy Wall, Series: HSB, 600 VAC, 2.2 in ID Expanded, 1.2 in ID Recovered, 3 Leg, -55 to 100 deg C, 3:1 Shrink Ratio, 1 AWG to 600 kcmil Wire, 7.09 in Length, Polyolefin, Black, 0.12 in THK Dimensions

When it comes to moisture proofing connections and terminations, T&B® heat shrinkable tubing, boots and end caps have proven themselves over years of service to the industry. Made of thermally stabilized cross linked polyolefin, these heat shrinkable insulators can be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials.

Product Details

Shrink-Kon®, HSB170-82-3, Heat Shrinkable, Heavy Wall, Series: HSB, 600 VAC, 2.2 in ID Expanded, 1.2 in ID Recovered, 3 Leg, -55 to 100 deg C, 3:1 Shrink Ratio, 1 AWG to 600 kcmil Wire, 7.09 in Length, Polyolefin, Black, 0.12 in THK Dimensions

When it comes to moisture proofing connections and terminations, T&B® heat shrinkable tubing, boots and end caps have proven themselves over years of service to the industry. Made of thermally stabilized cross linked polyolefin, these heat shrinkable insulators can be used over lead, steel, aluminum, copper, standard plastic and elastomeric insulating materials.

Attributes

Country Of Origin: Canada
Color: Black
Dimensions: 0.12 in THK
Inner Diameter Expanded: 2.2 in
Inner Diameter Recovered: 1.2 in
Length: 7.09 in
Material: Polyolefin
Number of Legs: 3
Series: HSB
Shrink Ratio: 3:1
Temperature Rating: -55 to 100 deg C
Type: Heavy Wall
Voltage Rating: 600 VAC
Wire Gauge: 1 AWG to 600 kcmil

Features

  • Thermoplastic adhesive liner provides complete environmental protection and insulation
  • Strain-relief and mechanical protection
  • Boots for 2-, 3- and 4-way cable breakouts
  • 0.89 in Dia maximum expanded
  • 0.35 in Dia maximum recovered
  • 280 V/mil (11kV/mm) dielectric strength
  • 0.03% water absorption
  • Made of cross linked polyolefin

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
