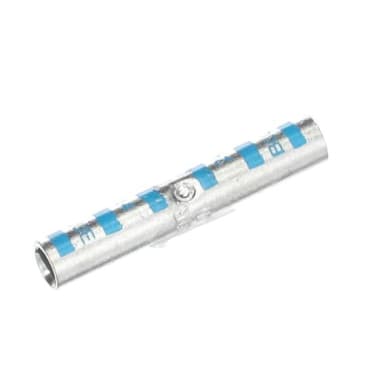

ABB 54805 2-WAY COPPER SPLICE CONNECTOR LONG BARREL NO6 BLUE
Product Details
Attributes
Features
Resources
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 6 AWG Conductor, Die Code: 24, 600 VAC, 0.31 in OD, 1-3/4 in Length, Specifications: Tin Plated, Copper, Blue Color Code
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 61/24 = 24.6 kcmil wire size flex
Product Details
Color-Keyed® Splice Connector, 2-Way Long Barrel, Copper Conductor, 6 AWG Conductor, Die Code: 24, 600 VAC, 0.31 in OD, 1-3/4 in Length, Specifications: Tin Plated, Copper, Blue Color Code
Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®.
Attributes
Features
- 2-way connector provides high pullout values, easy-to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV voltage rating
- 61/24 = 24.6 kcmil wire size flex
