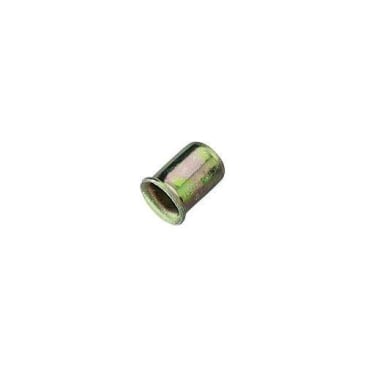

IDEAL 30-410 Image 1

IDEAL 30-410 MODEL 410 18-10AWG STEEL CRIMP CONNECTOR (PK100)

MFR Part #: 30-410
SKU #: 1267631
Brand: IDEAL®
UPC: 783250304103
IDEAL® 30-410 410® Crimp Connector, 18 to 10 AWG, Copper/Steel
For making fast, permanent and pressure type connections
RoHS Compliant | CSA C22.2 No. 188 Certified | UL 486C | W-S-610E Federal Specification

IDEAL® Crimp Connector, Series: 410®, 18 to 10 AWG Wire, 600 VAC, Specifications: (1) 14 AWG with (1) 18 AWG Minimum, (2) 10 AWG with (2) 14 AWG Max Conductor Range, 221 deg F, Copper/Steel, Zinc Plated, 3/8 in L x 13/64 in W Dimensions

Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.

Product Details

IDEAL® Crimp Connector, Series: 410®, 18 to 10 AWG Wire, 600 VAC, Specifications: (1) 14 AWG with (1) 18 AWG Minimum, (2) 10 AWG with (2) 14 AWG Max Conductor Range, 221 deg F, Copper/Steel, Zinc Plated, 3/8 in L x 13/64 in W Dimensions

Crimp connectors from IDEAL® are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.

Attributes

Country Of Origin: US
Dimensions: 3/8 in L x 13/64 in W
Finish: Zinc Plated
Material: Copper/Steel
Series: 410®
Specifications: (1) 14 AWG with (1) 18 AWG Minimum, (2) 10 AWG with (2) 14 AWG Max Conductor Range
Temperature Rating: 221 deg F
Voltage Rating: 600 VAC
Wire Size: 18 to 10 AWG

Features

  • Three models cover a wire range from 18 to 4 AWG
  • Long zinc plated steel sleeves maximize contact area with conductors
  • , will not vibrate loose when securely crimped
  • Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available
  • The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock

Resources

Owners/User Manual
RoHS
