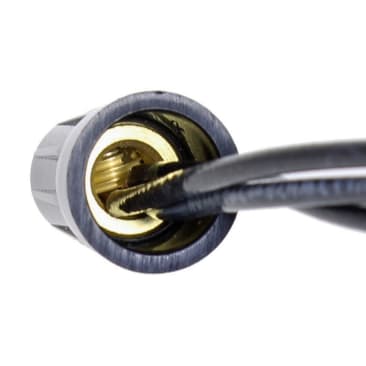

IDEAL 30-222 Image 1

IDEAL 30-222 SET SCREW NO.22 CONN (100/CTN)

MFR Part #: 30-222
SKU #: 1059424
Brand: IDEAL®
UPC: 783250302222
IDEAL® 30-222 Set Screw Connector, 22 to 10 AWG Copper Wire, Slotted Screw, Brass/Polypropylene
(1) K-2422 Set Screw Holder
ARRA Compliant | Buy American Act Compliant | CSA C22.2 No. 188 | Federal Specification W-S-610E | RoHS Compliant | UL 486C

IDEAL® Set Screw Connector, Series: 22 Series, Copper Wire, 22 to 10 AWG Wire, Slotted Screw, 600 VAC, Specifications: 1 to 6 Conductors, 1/2 in H x 13/32 in W Connector, 302 deg F, Brass/Polypropylene, Black, 11/16 in W x 1-1/64 in H Dimensions

Set screw wire connectors from IDEAL® ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 to 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.

Product Details

IDEAL® Set Screw Connector, Series: 22 Series, Copper Wire, 22 to 10 AWG Wire, Slotted Screw, 600 VAC, Specifications: 1 to 6 Conductors, 1/2 in H x 13/32 in W Connector, 302 deg F, Brass/Polypropylene, Black, 11/16 in W x 1-1/64 in H Dimensions

Set screw wire connectors from IDEAL® ensure a vibration-resistant splice, perfect for applications near motors or other vibration. The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 to 10 AWG. Each package contains plastic caps, allowing for insulation of the splice after installation, as well as a set screw holder to allow for ease of installation.

Attributes

Color: Black
Country Of Origin: US
Dimensions: 11/16 in W x 1-1/64 in H
Material: Brass/Polypropylene
Screw Type: Slotted
Series: 22 Series
Specifications: 1 to 6 Conductors, 1/2 in H x 13/32 in W Connector
Temperature Rating: 302 deg F
Voltage Rating: 600 VAC
Wire Size: 22 to 10 AWG
Wire Type: Copper

Features

  • Eliminates need for restriping wire each time the connection is disturbed
  • Set screw easily and securely applies maximum compression to conductors to ensure a vibration-resistant splice
  • Permits fast visual inspection of splice
  • Tough, flame-retardant shell rated at 302 deg F
  • Minimum (1) 16 AWG with (3) 18 AWG maximum (2) 10 AWG with (1) 12 AWG wire combination range
  • The solid brass sleeve inserts come in three sizes, allowing wire ranges 22 AWG - 10 AWG
