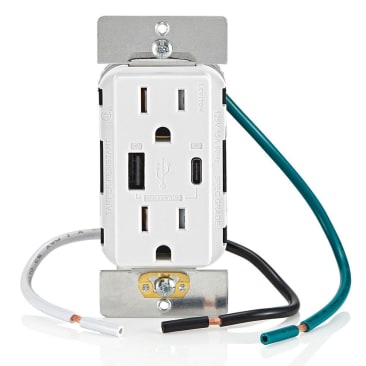

LEVITON T5634-W 15A DECORA TAMPER RESISTANT WALL OUTLET WITH 60W USB A/C CHARGER WHITE
MFR Part #:Â T5634-W
SKU #:Â 1269658
Brand: Leviton®
UPC:Â 07847700105
Leviton® T5634-W Duplex Grounding Charger Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
2 Years Limited
Ideal for residential and commercial applications including kitchens, bedrooms, home offices, college dormitories, airport lounges, hospitals, salons and spas, hotels, meeting rooms, cafes, restaurants and more
FCC Part 15 Class B | cCSAus Listed | UL 1310/498 Listed
Product Details
Attributes
Features
Resources
Leviton®, T5634-W, Charger Receptacle, Duplex Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Commercial Specification Grade, Wire Lead Terminal, White, 4.15 in H x 1.75 in W x 1.86 in D Dimensions
Color:
White
Country Of Origin:
China
Amperage Rating:
15 A
Dimensions:
4.15 in H x 1.75 in W x 1.86 in D
Grade:
Residential/Commercial Specification
NEMA Rating:
NEMA 5-15R
Number of Poles:
2
Number of Wires:
3
Terminal Type:
Wire Lead
Type:
Duplex Grounding
Voltage Rating:
125 VAC
- Charges most Type-C devices as well as Type A devices
- USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops. Up to 2X the charging power with PD devices
- USB Type A port provides powerful charging for existing devices
- Adapter-free charging of Type A and Type-C devices for a sleek and uncluttered appearance
- No data transfer capability
- The USB Type-C power delivery port is capable of 5 VDC, 9 VDC, 15 VDC and 20 VDC with a maximum power output of 50 W. The Type A port is capable of 5 VDC with a maximum power output of 10 W
- When the USB Type-C port is connected to a power-delivery capable electronic device, the charger negotiates up to the highest power at which it is capable of charging, such as 9 VDC at 3 A (27 W), 15 VDC at 3 A (45 W) or 20 VDC at 2.5 A (50 W)
- When a device is connected to the Type A port, the charger outputs 5 VDC at 2 A (10 W)
- When both ports are in use, the Type A port outputs 5 VDC at 2 A (10 W). The USB Type-C port continues to provide 5 VDC at 3 A (15 W), 9 VDC at 3 A (27 W), 15 VDC at 3 A (45 W) or 20 VDC at 2.5 A (50 W)
- 15 A and 20 A receptacle models available
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
- Internal thermo regulator prevents the electronics from overheating
- USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- Type-C USB Ports enable cables to be inserted in either direction
- Tamper-resistant receptacles help prevent access by most non-rated, foreign objects
- Compatible with Decora wallplates and Decora Plus screwless wallplates (sold separately)
- Spec Grade
Product Details
Leviton®, T5634-W, Charger Receptacle, Duplex Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Commercial Specification Grade, Wire Lead Terminal, White, 4.15 in H x 1.75 in W x 1.86 in D Dimensions
Attributes
Color:Â White
Country Of Origin:Â China
Amperage Rating:Â 15 A
Dimensions:Â 4.15 in H x 1.75 in W x 1.86 in D
Grade:Â Residential/Commercial Specification
NEMA Rating:Â NEMA 5-15R
Number of Poles:Â 2
Number of Wires:Â 3
Terminal Type:Â Wire Lead
Type:Â Duplex Grounding
Voltage Rating:Â 125 VAC
Features
- Charges most Type-C devices as well as Type A devices
- USB Type-C or USB-C provides faster charging and is the new standard port on many phones, tablets and laptops. Up to 2X the charging power with PD devices
- USB Type A port provides powerful charging for existing devices
- Adapter-free charging of Type A and Type-C devices for a sleek and uncluttered appearance
- No data transfer capability
- The USB Type-C power delivery port is capable of 5 VDC, 9 VDC, 15 VDC and 20 VDC with a maximum power output of 50 W. The Type A port is capable of 5 VDC with a maximum power output of 10 W
- When the USB Type-C port is connected to a power-delivery capable electronic device, the charger negotiates up to the highest power at which it is capable of charging, such as 9 VDC at 3 A (27 W), 15 VDC at 3 A (45 W) or 20 VDC at 2.5 A (50 W)
- When a device is connected to the Type A port, the charger outputs 5 VDC at 2 A (10 W)
- When both ports are in use, the Type A port outputs 5 VDC at 2 A (10 W). The USB Type-C port continues to provide 5 VDC at 3 A (15 W), 9 VDC at 3 A (27 W), 15 VDC at 3 A (45 W) or 20 VDC at 2.5 A (50 W)
- 15 A and 20 A receptacle models available
- Smart chip recognizes and optimizes the charging requirements of individual devices
- Built-in overcurrent protection helps protect the electronics from receiving too much power, which can damage the device
- Internal thermo regulator prevents the electronics from overheating
- USB Ports tested to meet the industry requirement to withstand over 10,000 insertions
- Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
- Type-C USB Ports enable cables to be inserted in either direction
- Tamper-resistant receptacles help prevent access by most non-rated, foreign objects
- Compatible with Decora wallplates and Decora Plus screwless wallplates (sold separately)
- Spec Grade
