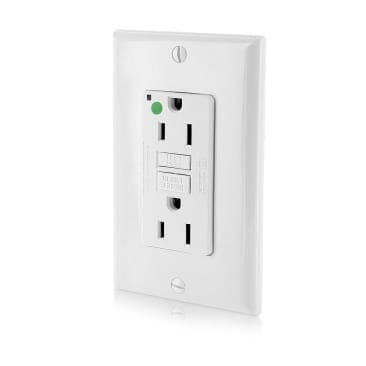

LEVITON GFNT1-HGW SMARTLOCKPRO 15A 125V HOSPITAL SELF TEST GFCI RECEPTACLE WHITE
MFR Part #: GFNT1-HGW
SKU #: 1120323
Brand: Leviton®
UPC: 078477725030
Leviton® SmartlockPro® Slim® GFNT1-HGW Feed Through Non-Tamper Resistant Self-Test GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
2 Years Limited
Matching Wallplate
UL Listed | CSA Certified | NOM-ANCE
Product Details
Attributes
Features
Resources
Leviton® SmartlockPro® Slim® GFCI Receptacle, Feed Through Non-Tamper Resistant Self-Test, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Extra Heavy Duty/Hospital Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate/Polycarbonate, White, 4.05 in H x 1.74 in W x 1.36 in D Dimensions
Amperage Rating:
15 A
Color:
White
Country Of Origin:
China
Dimensions:
4.05 in H x 1.74 in W x 1.36 in D
Grade:
Extra Heavy Duty/Hospital
Horsepower:
1 hp
Material:
Polybutylene Terephthalate/Polycarbonate
NEMA Rating:
NEMA 5-15R
Number of Poles:
2
Number of Wires:
3
Temperature Rating:
-35 to 66 deg C
Terminal Type:
Back/Side Wire
Type:
Feed Through Non-Tamper Resistant Self-Test
Voltage Rating:
125 VAC
- Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Low profile design is easy to install in all electrical boxes
- Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost
Product Details
Leviton® SmartlockPro® Slim® GFCI Receptacle, Feed Through Non-Tamper Resistant Self-Test, 125 VAC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Extra Heavy Duty/Hospital Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate/Polycarbonate, White, 4.05 in H x 1.74 in W x 1.36 in D Dimensions
Attributes
Amperage Rating: 15 A
Color: White
Country Of Origin: China
Dimensions: 4.05 in H x 1.74 in W x 1.36 in D
Grade: Extra Heavy Duty/Hospital
Horsepower: 1 hp
Material: Polybutylene Terephthalate/Polycarbonate
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -35 to 66 deg C
Terminal Type: Back/Side Wire
Type: Feed Through Non-Tamper Resistant Self-Test
Voltage Rating: 125 VAC
Features
- Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Low profile design is easy to install in all electrical boxes
- Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost
