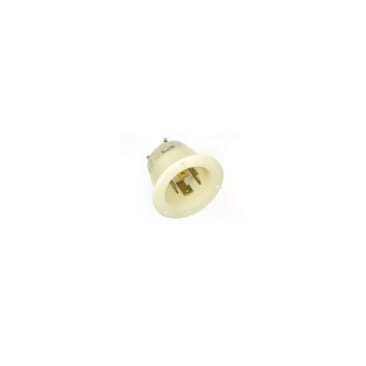

LEVITON 2745 Image 1

LEVITON 2745 30A 600V 3PH 3-POLE 4-WIRE FLANGED INLET WHITE

MFR Part #: 2745
SKU #: 1263517
Brand: Leviton®
UPC: 7847780641
Leviton® 2745 3-Phase Grounding Receptacle Locking Flanged Inlet, 600 VAC, 30 A, 3 Poles, 4 Wires, White
Lifetime
Commercial Applications
ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No.42 File No. LR406 | Federal Specification WC596 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Leviton®, 2745, Locking Flanged Inlet, 3-Phase Grounding Receptacle, 600 VAC, 30 A, 3 Pole, 4 Wires, NEMA L17-30P NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 33 in Dia Dimensions

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Product Details

Leviton®, 2745, Locking Flanged Inlet, 3-Phase Grounding Receptacle, 600 VAC, 30 A, 3 Pole, 4 Wires, NEMA L17-30P NEMA Rating, Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 33 in Dia Dimensions

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and our V-0-Max™ line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

Attributes

Amperage Rating: 30 A
Country Of Origin: Mexico
Color: White
Dimensions: 33 in Dia
Grade: Industrial
Material: Nylon
NEMA Rating: NEMA L17-30P
Number of Poles: 3
Number of Wires: 4
Temperature Rating: -40 to 60 deg C
Terminal Type: Back Wire
Type: 3-Phase Grounding Receptacle
Voltage Rating: 600 VAC

Features

  • 14 to 8 AWG terminal accommodation, grounding
  • 2000 VAC minimum dielectric strength
  • Maximum 30 deg C after 250 cycles OL at 200% rated current temperature rise
  • Nylon face material, solid brass line contacts
  • #10-32 brass terminal screws
  • #8-32 brass grounding screws
  • Thermoplastic nylon strap
  • Brass-hot, green ground, white-neutral terminal ID
  • Ratings are permanently marked on device product ID
  • Rugged nylon flange fits flush and wont crack in high abuse applications
  • Individual deep-funneled chamfered wire wells guide each wire into rectangular chambers
  • Wire clamps bundle stranded wire without cutting wire strands
