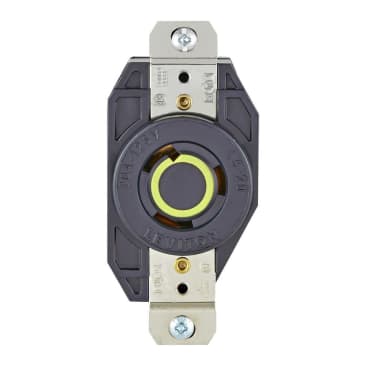

LEVITON 2310 Image 1

LEVITON 2310 20A 125V 2-POLE 3-WIRE LOCKING INDUSTRIAL SINGLE RECEPTACLE EBONY

MFR Part #: 2310
SKU #: 0777290
Brand: Leviton®
UPC: 078477801109
Leviton® 2310 Grounding Locking Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Commercial Applications
NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 | Federal Specification WC596/E13399 | UL 498 | UL94 V-0/V-2 Flammability Rating

Leviton®, 2310, Locking Receptacle, Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Product Details

Leviton®, 2310, Locking Receptacle, Grounding, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA L5-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Attributes

Amperage Rating: 20 A
Country Of Origin: Mexico
Voltage Rating: 125 VAC
Color: Black
Dimensions: 3.63 in H x 1.69 in W x 1.31 in D
Grade: Industrial
Horsepower: 1 hp
Material: Polybutylene Terephthalate
NEMA Rating: NEMA L5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Back/Side Wire
Type: Grounding

Features

  • Box mounting
  • 14 to 8 AWG terminal accommodation
  • Flush mount

Resources

Instruction/Installation Manual
RoHS
