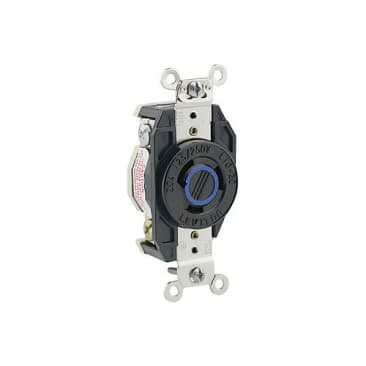

LEVITON 2370 Image 1

LEVITON 2370 20A 250V 3-POLE 3-WIRE LOCKING INDUSTRIAL SINGLE RECEPTACLE EBONY

MFR Part #: 2370
SKU #: 1093586
Brand: Leviton®
UPC: 078477045305
Leviton® 2370 3-Phase Y Non-Grounding Locking Receptacle, 250 VAC, 20 A, 3 Poles, 3 Wires, Black
Industrial Applications
NEMA WD6/WD1/WD5 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 | Federal Specification WC596 | UL 498 | UL94 V-0 Flammability Rating

Leviton®, 2370, Locking Receptacle, 3-Phase Y Non-Grounding, 250 VAC, 20 A, 2 hp, 3 Pole, 3 Wires, NEMA L11-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Product Details

Leviton®, 2370, Locking Receptacle, 3-Phase Y Non-Grounding, 250 VAC, 20 A, 2 hp, 3 Pole, 3 Wires, NEMA L11-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions

Leviton® industrial grade locking devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of locking devices of unmatched flexibility and dependability.

Attributes

Amperage Rating: 20 A
Country Of Origin: Mexico
Voltage Rating: 250 VAC
Color: Black
Dimensions: 3.63 in H x 1.69 in W x 1.31 in D
Grade: Industrial
Horsepower: 2 hp
Material: Polybutylene Terephthalate
NEMA Rating: NEMA L11-20R
Number of Poles: 3
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Back/Side Wire
Type: 3-Phase Y Non-Grounding

Features

  • Box mounting
  • 14 to 8 AWG terminal accommodation
  • Flush mount

Resources

Instruction/Installation Manual
