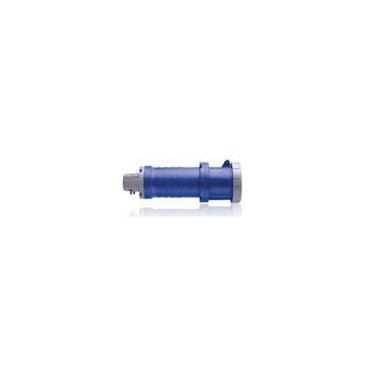

LEVITON 360C6W CONNECTOR WT 2P 3W 60A 250V
Product Details
Attributes
Features
Resources
Leviton®, 360C6W, Pin and Sleeve Connector, North American Configuration Watertight, Series: Series II, 250 VAC, 60 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 4.41 in Dia x 11.26 in L Dimensions
Leviton® pin and sleeve devices are easy to use. Matching amperage and voltage requirements is literally as easy as matching colors and telling time. The amperage rating is related to the size of the device, devices of the same amperage are the same size. The voltage rating is related to the location of the ground sleeve ON the female device and the number of conductors. This location is based on a clock face with the key way at the 6 oclock position. The ground sleeve is positioned at a specific hour location, depending ON the devices voltage rating.
- Watertight chloroprene onion skin grommet provides a precise, reliable seal at the cable entry point
- Rear terminals, raised lettering identification
- Calibrated, self-adjusting contacts
- Front terminals, raised lettering identification
- Rugged housing, made of superior performance valox™357, provides maximum corrosion protection and makes the device resistant to impact and abuse, greater resistance to temperature extremes, V-0 flame rated and superior UV stability
- Contact carrier resists arcing and internal heat build-up, 60 and 100 A contact/pin carriers are made of reinforced nylon for even greater strength and temperature resistance
- Solid brass terminal screws on 20 A, 30 A and 60 A devices provide maximum clamping pressure
- Stainless steel terminal screws and terminals on 100 A devices provide corrosion resistance in caustic environments
- Multiple contact points assure a continuously reliable electrical connection
