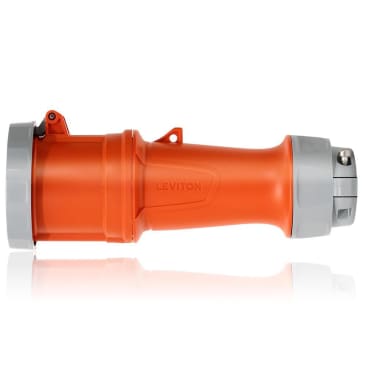

LEVITON 460C12WLEV 60A PIN & SLEEVE CONNECTOR ORANGE
MFR Part #:Â 460C12WLEV
SKU #:Â 1263585
Brand: Leviton®
UPC:Â 7847794552
Leviton® 460C12WLEV LEV Series Dustight North American Rated Watertight Pin and Sleeve Connector, 125/250 VAC, 60 A, 3 Poles, 4 Wires, Orange
5 years Limited
Washdown/Outdoor, Food and Beverages Applications
CE Certified | CSA C22.2 File No. 182.1-13 | IEC 60309-1 | IEC 60309-2 | NOM ANCE Certified | NSF 14159-1 | UL 1682 | UL 1686 C2 | UL 94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
Leviton® Pin and Sleeve Connector, Dustight North American Rated Watertight, Series: LEV Series, 125/250 VAC, 60 A, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Orange, 11.01 in L x 4.1 in W Dimensions
Amperage Rating:
60 A
Country Of Origin:
Mexico
Voltage Rating:
125/250 VAC
Color:
Orange
Dimensions:
11.01 in L x 4.1 in W
Enclosure:
IP66/IP67/IP68/IP69K
Grade:
Industrial
Material:
Nylon
NEMA Rating:
NEMA 3R/4X/6P/12
Number of Poles:
3
Number of Wires:
4
Series:
LEV Series
Terminal Type:
Hex Socket Screw
Type:
Dustight North American Rated Watertight
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and outlast the competition
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
Product Details
Leviton® Pin and Sleeve Connector, Dustight North American Rated Watertight, Series: LEV Series, 125/250 VAC, 60 A, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Orange, 11.01 in L x 4.1 in W Dimensions
Attributes
Amperage Rating:Â 60 A
Country Of Origin:Â Mexico
Voltage Rating:Â 125/250 VAC
Color:Â Orange
Dimensions:Â 11.01 in L x 4.1 in W
Enclosure:Â IP66/IP67/IP68/IP69K
Grade:Â Industrial
Material:Â Nylon
NEMA Rating:Â NEMA 3R/4X/6P/12
Number of Poles:Â 3
Number of Wires:Â 4
Series:Â LEV Series
Terminal Type:Â Hex Socket Screw
Type:Â Dustight North American Rated Watertight
Features
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and outlast the competition
- Improved speed of assembly with threaded housings that have less screws for reduced installation time
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
