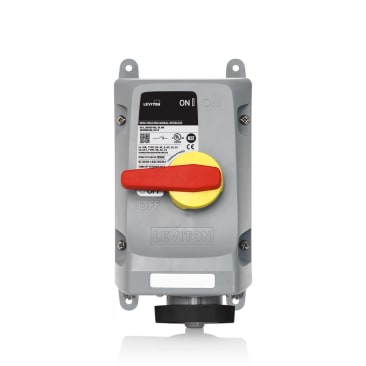

LEVITON 430MI5WLEV 30A MECHANICAL INTERLOCK BLACK
MFR Part #:Â 430MI5WLEV
SKU #:Â 1263577
Brand: Leviton®
UPC:Â 7847725143
Leviton® 430MI5WLEV Non-Fused Watertight Pin and Sleeve Mechanical Interlock, 600 VAC, 30 A, 3 Poles, 4 Wires
5 years Limited
Food and Beverage Facilities, Washdown and Outdoor Applications
CE Certified | CSA C22.2 No. 94.1-07 | IEC 60309-1 | IEC 60309-2 | IEC 60309-4 | UL 231 | UL 1682 | UL 1686 | UL 50 | UL 50E | UL 60947-4-1 | UL 60947-1 | UL 746 | UL 94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
Leviton® Pin and Sleeve Mechanical Interlock, Non-Fused Watertight, Series: LEV, 600 VAC, 30 A, 25 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, PBT/Polycarbonate, Black, 12.16 in H x 8.86 in W x 8.29 in D Dimensions
Country Of Origin:
Mexico
Amperage Rating:
30 A
Color:
Black
Dimensions:
12.16 in H x 8.86 in W x 8.29 in D
Enclosure:
NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K
Material:
PBT/Polycarbonate
Mounting:
Threaded
Number of Poles:
3
Number of Wires:
4
Power Rating:
25 hp
Series:
LEV
Type:
Non-Fused Watertight
Voltage Rating:
600 VAC
- Designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Bottom hinged cover design makes installation and maintenance quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
Product Details
Leviton® Pin and Sleeve Mechanical Interlock, Non-Fused Watertight, Series: LEV, 600 VAC, 30 A, 25 hp Power, 3 Pole, 4 Wires, NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K Enclosure, Threaded Mounting, PBT/Polycarbonate, Black, 12.16 in H x 8.86 in W x 8.29 in D Dimensions
Attributes
Country Of Origin:Â Mexico
Amperage Rating:Â 30 A
Color:Â Black
Dimensions:Â 12.16 in H x 8.86 in W x 8.29 in D
Enclosure:Â NEMA 3R/4X/12/IP66/IP67/IP68/IP69/IP69K
Material:Â PBT/Polycarbonate
Mounting:Â Threaded
Number of Poles:Â 3
Number of Wires:Â 4
Power Rating:Â 25 hp
Series:Â LEV
Type:Â Non-Fused Watertight
Voltage Rating:Â 600 VAC
Features
- Designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Bottom hinged cover design makes installation and maintenance quicker and easier
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
