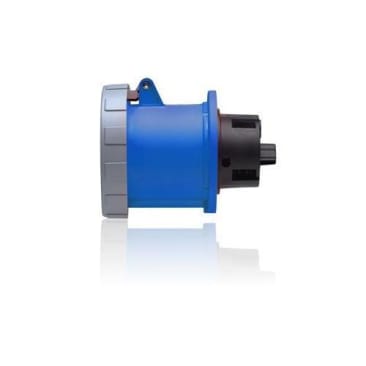

LEVITON 360R6W RECP. WT 29 3Q 60A 250V
MFR Part #:Â 360R6W
SKU #:Â 1191472
Brand: Leviton®
UPC:Â 07847783787
Please note this item is discontinued (order fulfillment will depend on stock availability): Leviton® 360R6W Watertight Sleeve And Pin Receptacle, 250 VAC, 60 A, 2 Poles, 3 Wires, Blue
2 years Limited
UL 1682/1686 | CSA C22.2 No. 182.1 per Low Voltage Directives 73/23/EEC/93/68/EEC | IEC 60309-1/60309-2 | UL94 V-2 Flammability Rating
Product Details
Attributes
Features
Resources
Leviton®, 360R6W, Sleeve And Pin Receptacle, Watertight, 250 VAC, 60 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 4.37 in H x 5.39 in D Dimensions
Amperage Rating:
60 A
Clearance Items:
Clearance
Country Of Origin:
Czech Republic
Voltage Rating:
250 VAC
Color:
Blue
Dimensions:
4.37 in H x 5.39 in D
Enclosure:
IP67
Frequency Rating:
50/60 Hz
Grade:
Industrial
Material:
Valox® 357
Number of Poles:
2
Number of Wires:
3
Temperature Rating:
-40 to 60 deg C
Terminal Type:
Screw
Type:
Watertight
- Certified for current interrupting at full rated current
- Ferrous parts immersed in 20 deg C, 10% ammonium chloride solution for 10 min
Product Details
Leviton®, 360R6W, Sleeve And Pin Receptacle, Watertight, 250 VAC, 60 A, 50/60 Hz Frequency, 2 Pole, 3 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Blue, 4.37 in H x 5.39 in D Dimensions
Attributes
Amperage Rating:Â 60 A
Clearance Items:Â Clearance
Country Of Origin:Â Czech Republic
Voltage Rating:Â 250 VAC
Color:Â Blue
Dimensions:Â 4.37 in H x 5.39 in D
Enclosure:Â IP67
Frequency Rating:Â 50/60 Hz
Grade:Â Industrial
Material: Valox® 357
Number of Poles:Â 2
Number of Wires:Â 3
Temperature Rating:Â -40 to 60 deg C
Terminal Type:Â Screw
Type:Â Watertight
Features
- Certified for current interrupting at full rated current
- Ferrous parts immersed in 20 deg C, 10% ammonium chloride solution for 10 min
