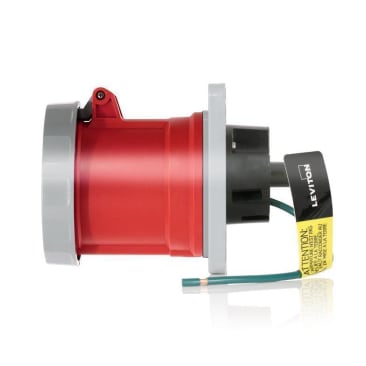

LEVITON 460R7WLEV 60A PIN & SLEEVE RECEPTACLE RED
MFR Part #:Â 460R7WLEV
SKU #:Â 1263600
Brand: Leviton®
UPC:Â 7847790190
Leviton® 460R7WLEV LEV Series 3-Phase Dustight North American Rated Watertight Pin and Sleeve Receptacle, 480 VAC, 60 A, 3 Poles, 4 Wires, Red
5 years Limited
Washdown/Outdoor, Food and Beverages Applications
CE Certified | CSA C22.2 File No. 182.1-13 | IEC 60309-1 | IEC 60309-2 | NOM ANCE Certified | NSF 14159-1 | UL 1682 | UL 1686 C2 | UL 94 V-0 Flammability Rating
Product Details
Attributes
Features
Resources
Leviton® Pin and Sleeve Receptacle, 3-Phase Dustight North American Rated Watertight, Series: LEV Series, 480 VAC, 60 A, 15 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Red, 6.1 in L x 4.5 in W x 4.5 in H Dimensions
Amperage Rating:
60 A
Country Of Origin:
Mexico
Voltage Rating:
480 VAC
Color:
Red
Dimensions:
6.1 in L x 4.5 in W x 4.5 in H
Enclosure:
IP66/IP67/IP68/IP69K
Grade:
Industrial
Horsepower:
15 hp
Material:
Nylon
NEMA Rating:
NEMA 3R/4X/6P/12
Number of Poles:
3
Number of Wires:
4
Series:
LEV Series
Terminal Type:
Hex Socket Screw
Type:
3-Phase Dustight North American Rated Watertight
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Nickel plated pins and sleeves are self-cleaning and corrosion-resistant
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
Product Details
Leviton® Pin and Sleeve Receptacle, 3-Phase Dustight North American Rated Watertight, Series: LEV Series, 480 VAC, 60 A, 15 hp, 3 Pole, 4 Wires, NEMA 3R/4X/6P/12 NEMA Rating, Industrial Grade, IP66/IP67/IP68/IP69K Enclosure, Hex Socket Screw Terminal, Nylon, Red, 6.1 in L x 4.5 in W x 4.5 in H Dimensions
Attributes
Amperage Rating:Â 60 A
Country Of Origin:Â Mexico
Voltage Rating:Â 480 VAC
Color:Â Red
Dimensions:Â 6.1 in L x 4.5 in W x 4.5 in H
Enclosure:Â IP66/IP67/IP68/IP69K
Grade:Â Industrial
Horsepower:Â 15 hp
Material:Â Nylon
NEMA Rating:Â NEMA 3R/4X/6P/12
Number of Poles:Â 3
Number of Wires:Â 4
Series:Â LEV Series
Terminal Type:Â Hex Socket Screw
Type:Â 3-Phase Dustight North American Rated Watertight
Features
- LEV series IEC 60309 pin and sleeve devices are designed to simplify your installation, endure the harshest environments and improve safety and productivity
- Nickel plated pins and sleeves are self-cleaning and corrosion-resistant
- Superior watertight ratings including IP69K for washdown/outdoor applications and industry exclusive IP68 for long term submersion
- NSF certified sanitary design trusted for use in food and beverage facilities
