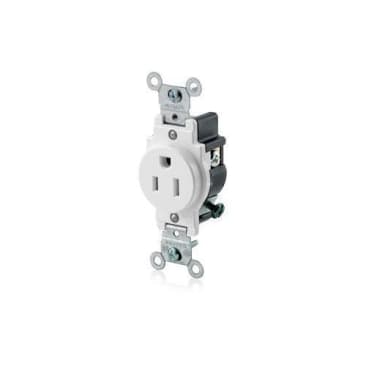

LEVITON 5015-W Image 1

LEVITON 5015-W 15A 125V 2-POLE 3-WIRE SINGLE RECEPTACLE WHITE

MFR Part #: 5015-W
SKU #: 1002654
Brand: Leviton®
UPC: 078477206058
Leviton® 5015-W Heavy Duty Grounding Narrow Body Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
10 years Limited
ANSI C-73 | CSA C22.2 No. 42 File No. 152105 | NOM 057 | UL Federal Specification WC-596 File No. E13399 | UL 498 File No. E13399 | UL 94 Flammability Rating

Leviton®, 5015-W, Straight Blade Receptacle, Heavy Duty Grounding Narrow Body, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-2/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Nylon, White, 4.06 in H x 1.38 in W x 1.06 in D Dimensions

Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.

Product Details

Leviton®, 5015-W, Straight Blade Receptacle, Heavy Duty Grounding Narrow Body, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-2/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Nylon, White, 4.06 in H x 1.38 in W x 1.06 in D Dimensions

Leviton® line of Heavy Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.

Attributes

Amperage Rating: 15 A
Color: White
Country Of Origin: Mexico
Dimensions: 4.06 in H x 1.38 in W x 1.06 in D
Enclosure: NEMA WD-2/WD-6
Grade: Commercial
Horsepower: 1/2 hp
Material: Nylon
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Side Wire
Type: Heavy Duty Grounding Narrow Body
Voltage Rating: 125 VAC

Features

  • Manufactured to withstand the demands of commercial and institutional applications
  • Heavy duty brass power contacts for maximum conductivity and plug retention
  • Shallow design for maximum wiring room in box
  • Wallbox mounting
  • Grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Narrow body single receptacle
  • Zinc plated steel strap
  • 14 to 10 AWG wire terminal

Resources

Instruction/Installation Manual
Owners/User Manual
RoHS
