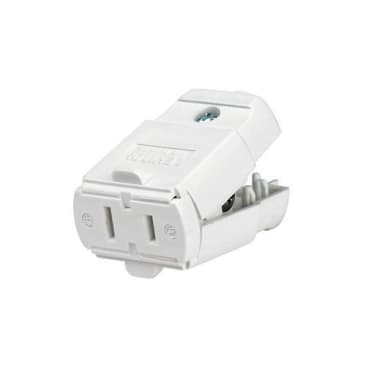

LEVITON 102-WP Image 1

LEVITON 102-WP 15A 125V 2-POLE 2-WIRE POLARIZED CONNECTOR WHITE

MFR Part #: 102-WP
SKU #: 1037784
Brand: Leviton®
UPC: 078477031636
Leviton® 102-WP Cable Mount Light Duty Non-Grounding Polarized Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 2 Wires, White
2 years Limited
NOM 057 | UL File No. E13393 | CSA Certified | UL94 V-2 Flammability Rating

Leviton®, 102-WP, Straight Blade Connector, Cable Mount Light Duty Non-Grounding Polarized, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15R/1-15P NEMA Rating, Residential Grade, 1/4 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic, White, 2.22 in H x 1.38 in W x 0.81 in D Dimensions

Leviton® offers a large selection of 15 and 20 A residential grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

Product Details

Leviton®, 102-WP, Straight Blade Connector, Cable Mount Light Duty Non-Grounding Polarized, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA 1-15R/1-15P NEMA Rating, Residential Grade, 1/4 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic, White, 2.22 in H x 1.38 in W x 0.81 in D Dimensions

Leviton® offers a large selection of 15 and 20 A residential grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

Attributes

Amperage Rating: 15 A
Country Of Origin: Mexico
Voltage Rating: 125 VAC
Color: White
Cord Diameter: 1/4 in
Dimensions: 2.22 in H x 1.38 in W x 0.81 in D
Grade: Residential
Material: Thermoplastic
NEMA Rating: NEMA 1-15R/1-15P
Number of Poles: 2
Number of Wires: 2
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: Cable Mount Light Duty Non-Grounding Polarized

Features

  • Triple drive head screws standard, Philips® and Robertson
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
  • Brass plug blades and connector contacts for maximum conductivity
  • Zinc plated steel assembly screws
  • 20 to 16 AWG terminal accommodation
  • Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
  • Motor base inlet accepts #10 maximum copper or copper clad wire

Resources

RoHS
