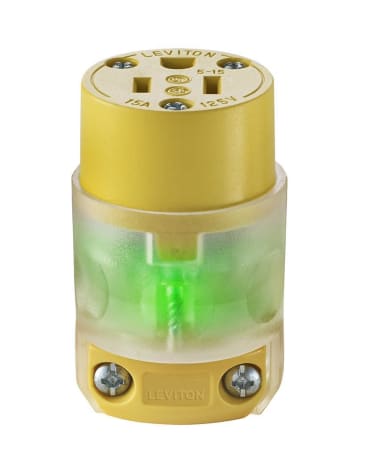

LEVITON 515CV-LIT Image 1

LEVITON 515CV-LIT 15A 125V 2-POLE 3-WIRE LIGHTED GROUNDING CONNECTOR YELLOW

MFR Part #: 515CV-LIT
SKU #: 1115248
Brand: Leviton®
UPC: 078477674864
Leviton® 515CV-LIT Grounding Lighted Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, White/Yellow
10 Years Limited
CSA C22.2 No. 42 File No. LR406 Certified | NOM (057) | UL 498 File No. E13393 Listed

Leviton® Straight Blade Connector, Grounding Lighted, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA, Commercial/Residential Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, PVC, White/Yellow, 1.54 in Dia x 2.61 in H Dimensions

Leviton® offers a large selection of 15, 20, 30 and 50 A straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they are ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Product Details

Leviton® Straight Blade Connector, Grounding Lighted, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA, Commercial/Residential Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, PVC, White/Yellow, 1.54 in Dia x 2.61 in H Dimensions

Leviton® offers a large selection of 15, 20, 30 and 50 A straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they are ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Attributes

Amperage Rating: 15 A
Country Of Origin: Mexico
Voltage Rating: 125 VAC
Color: White/Yellow
Cord Diameter: 0.245 to 0.7 in
Dimensions: 1.54 in Dia x 2.61 in H
Grade: Commercial/Residential
Material: PVC
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: Grounding Lighted

Features

  • Triple-drive head screws standard, philips, robertson
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with no 18-3 through no 12-3 cords (0.245 to 0.655 in)
  • Motor base inlet accepts #10 maximum copper or copper clad wire
  • Brass plug blades and connector contacts for maximum conductivity
  • Rugged PVC body resists moisture and chemicals
  • Unique dimpled body design provides a secure grip
  • Speed-thread assembly screws tighten with just a few quick turns
  • Power indication using green neon indicator light

Resources

RoHS
