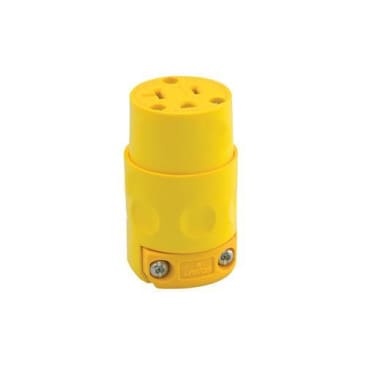

LEVITON 520CV Image 1

LEVITON 520CV 20A 125V 2-POLE 3-WIRE PVC CONNECTOR YELLOW

MFR Part #: 520CV
SKU #: 0778073
Brand: Leviton®
UPC: 078477841938
Leviton® 520CV Cable Mount Grounding Straight Blade Connector, 125 VAC, 20 A, 2 Poles, 3 Wires, Yellow
10 years Limited
ANSI C-73 | NOM 057 | NEMA WD-6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Leviton®, 520CV, Straight Blade Connector, Cable Mount Grounding, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, PVC, Yellow, 1.54 in Dia x 2.56 in H Dimensions

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

Product Details

Leviton®, 520CV, Straight Blade Connector, Cable Mount Grounding, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Screw Terminal, PVC, Yellow, 1.54 in Dia x 2.56 in H Dimensions

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

Attributes

Amperage Rating: 20 A
Country Of Origin: Mexico
Voltage Rating: 125 VAC
Color: Yellow
Cord Diameter: 0.245 to 0.7 in
Dimensions: 1.54 in Dia x 2.56 in H
Grade: Commercial
Material: PVC
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: Cable Mount Grounding

Features

  • Triple drive head screws standard, Philips® and Robertson
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
  • Motor base inlet accepts 10 AWG maximum copper or copper clad wire
  • Brass plug blades and connector contacts for maximum conductivity
  • Rugged PVC body resist moisture and chemicals
  • Unique dimpled body design provides a secure grip
  • Speed thread assembly screws tighten with just a few quick turns
  • Suited for outdoor cords
  • Zinc plated steel assembly screws
  • Deep-slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity

Resources

Specification Sheet
