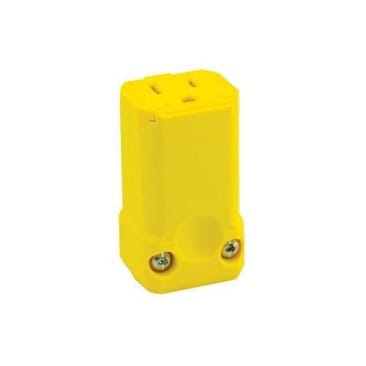

LEVITON 5259-VY Image 1

LEVITON 5259-VY 15A 125V 2-POLE 3-WIRE PYTHON CONNECTOR YELLOW

MFR Part #: 5259-VY
SKU #: 0777101
Brand: Leviton®
UPC: 078477055182
Leviton® 5259-VY Grounding Hinged Straight Blade Connector, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Lifetime
ANSI C-73 | NOM 057 | NEMA WD-1/WD-6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Leviton®, 5259-VY, Straight Blade Connector, Grounding Hinged, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Threaded Terminal, Nylon, Yellow, 1.41 in L x 1.23 in W x 2.5 in H Dimensions

When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.

Product Details

Leviton®, 5259-VY, Straight Blade Connector, Grounding Hinged, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, Threaded Terminal, Nylon, Yellow, 1.41 in L x 1.23 in W x 2.5 in H Dimensions

When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.

Attributes

Amperage Rating: 15 A
Country Of Origin: Mexico
Voltage Rating: 125 VAC
Color: Yellow
Cord Diameter: 0.245 to 0.7 in
Dimensions: 1.41 in L x 1.23 in W x 2.5 in H
Grade: Industrial
Material: Nylon
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Threaded
Type: Grounding Hinged

Features

  • Tough high impact body
  • Hinged design delivers fast, easy installation and assembly
  • Triple drive screws for easy wiring standard, Philips® and Robertson
  • 18-3 SVT to 10-3 ST (0.245 to 0.7 in) wide cord clamp range
  • 2000 VAC dielectric strength
  • Certified for current interrupting at full rated current
  • Thermoplastic back cover
  • Nylon cord clamp, wire module and clamp insert
  • Solid brass blades/contacts
  • Brass screws
  • Zinc plated steel assembly screws
  • 18 to 10 AWG terminal accommodation
  • Features hinged design for fast, easy, installation and assembly
  • Wide cord clamp range, 18-3 SVT-10-3 ST (0.245 to 0.7 in)
  • Clear thermoplastic back cover for easy visual inspection of wiring

Resources

RoHS
