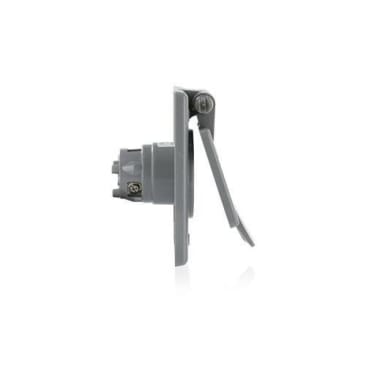

LEVITON 5278-CWP Image 1

LEVITON 5278-CWP 15A 125V FLANGED INLET GREY

MFR Part #: 5278-CWP
SKU #: 1124001
Brand: Leviton®
UPC: 078477018712
Leviton® 5278-CWP Grounding Straight Blade Power Inlet Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR16347 | UL 498 File No. E13393 | UL94 V-2 per UL94 V-0/V-2 Flammability Rating

Leviton®, 5278-CWP, Straight Blade Power Inlet Receptacle, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, -40 to 60 deg C, Standard Wire Well Terminal, Nylon, Gray, 4.56 in H x 2.84 in W x 2.82 in D Dimensions

Leviton® straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.

Product Details

Leviton®, 5278-CWP, Straight Blade Power Inlet Receptacle, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, -40 to 60 deg C, Standard Wire Well Terminal, Nylon, Gray, 4.56 in H x 2.84 in W x 2.82 in D Dimensions

Leviton® straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.

Attributes

Country Of Origin: US
Amperage Rating: 15 A
Color: Gray
Dimensions: 4.56 in H x 2.84 in W x 2.82 in D
Grade: Industrial
Horsepower: 1/2 hp
Material: Nylon
NEMA Rating: NEMA 5-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Standard Wire Well
Type: Grounding
Voltage Rating: 125 VAC

Features

  • Panel, FD box and FS box mounting
  • 2000 VAC minimum dielectric strength
  • Nylon strap
  • 18 to 10 AWG terminal accommodation, grounding
  • Panel, FD box, FS box mounting
  • Glass filled thermoplastic cover and plate
  • Brass line contacts

Resources

Instruction/Installation Manual
RoHS
