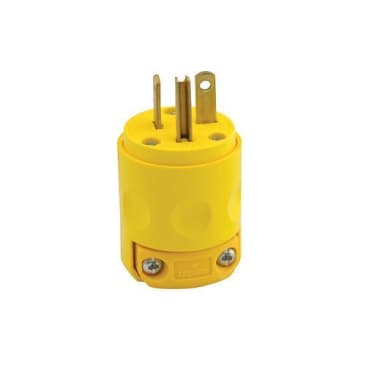

LEVITON 520PV 20A 125V 2-POLE 3-WIRE DEAD FRONT PLUG YELLOW
Product Details
Attributes
Features
Resources
Leviton® Straight Blade Plug, Cable Mount Grounding, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20P, Commercial Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Rugged PVC body resist moisture and chemicals
- Speed thread assembly screws tighten with just a few quick turns
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 12 AWG terminal accommodation
- Suited for outdoor cords
Product Details
Leviton® Straight Blade Plug, Cable Mount Grounding, 125 VAC, 20 A, 2 Poles, 3 Wires, NEMA 5-20P, Commercial Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.
Attributes
Features
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Rugged PVC body resist moisture and chemicals
- Speed thread assembly screws tighten with just a few quick turns
- Zinc plated steel assembly screws and solid brass blade and contacts
- 18 to 12 AWG terminal accommodation
- Suited for outdoor cords
