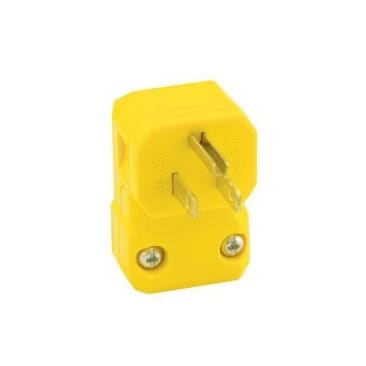

LEVITON 5256-VA Image 1

LEVITON 5256-VA 15A 125V PYTHON ANGLE PLUG YELLOW

MFR Part #: 5256-VA
SKU #: 0777102
Brand: Leviton®
UPC: 078477055168
Leviton® 5256-VA Angled Cable Mount Grounding High Visibility Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Lifetime
ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Leviton®, 5256-VA, Straight Blade Plug, Angled Cable Mount Grounding High Visibility, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, 0.25 to 0.655 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Yellow, 2.17 in H x 1.21 in W x 1.41 in D Dimensions

Leviton® industrial grade straight blade devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of straight blade devices of unmatched flexibility and dependability.

Product Details

Leviton®, 5256-VA, Straight Blade Plug, Angled Cable Mount Grounding High Visibility, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, 0.25 to 0.655 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Yellow, 2.17 in H x 1.21 in W x 1.41 in D Dimensions

Leviton® industrial grade straight blade devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton® combines the best materials available with superior production standards to produce a broad selection of straight blade devices of unmatched flexibility and dependability.

Attributes

Amperage Rating: 15 A
Country Of Origin: Mexico
Voltage Rating: 125 VAC
Color: Yellow
Cord Diameter: 0.25 to 0.655 in
Dimensions: 2.17 in H x 1.21 in W x 1.41 in D
Grade: Industrial
Material: Nylon
NEMA Rating: NEMA 5-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Terminal Type: Screw
Type: Angled Cable Mount Grounding High Visibility

Features

  • Hinged design for fast, easy, installation and assembly
  • Super tough high impact nylon body
  • Triple drive standard screws for easy wiring
  • Clear thermoplastic back cover for easy visual inspection of wiring
  • 18 to 10 AWG terminal accommodation
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
  • Features hinged design for fast, easy, installation and assembly

Resources

RoHS
