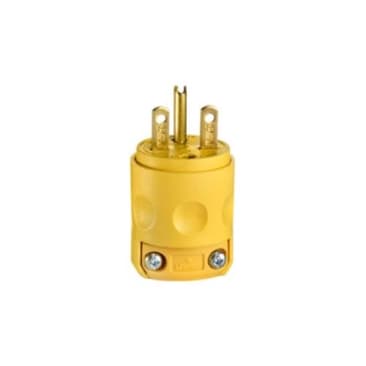

LEVITON 615PV Image 1

LEVITON 615PV 15A 250V 2-POLE 3-WIRE DEAD FRONT PLUG YELLOW

MFR Part #: 615PV
SKU #: 0778070
Brand: Leviton®
UPC: 078477842287
Leviton® 615PV Cable Mount Grounding Straight Blade Plug, 250 VAC, 15 A, 2 Poles, 3 Wires, Yellow
10 years Limited
Commercial and Outdoor Cords Applications
ANSI C73 | NOM 057 | NEMA WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13393 | UL94 V-2 Flammability Rating

Leviton®, 615PV, Straight Blade Plug, Cable Mount Grounding, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15P NEMA Rating, Commercial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H Dimensions

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

Product Details

Leviton®, 615PV, Straight Blade Plug, Cable Mount Grounding, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA 6-15P NEMA Rating, Commercial Grade, 0.245 to 0.7 in Diameter Cord, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H Dimensions

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant and they are ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw back wire clamps securely over stripped leads for maximum conductivity.

Attributes

Amperage Rating: 15 A
Country Of Origin: Mexico
Voltage Rating: 250 VAC
Color: Yellow
Cord Diameter: 0.245 to 0.7 in
Dimensions: 1.54 in Dia x 2.77 in H
Grade: Commercial
Material: PVC
NEMA Rating: NEMA 6-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Type: Cable Mount Grounding

Features

  • Triple drive standard head screws
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Husk and module keyed for easy alignment during wiring
  • Motor base inlet accepts 10 AWG maximum copper or copper clad wire
  • Rugged PVC body resist moisture and chemicals
  • Speed thread assembly screws tighten with just a few quick turns
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • 18 to 12 AWG terminal accommodation
  • Suited for outdoor cords
  • Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
  • Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
