LEVITON 620PV Image 1

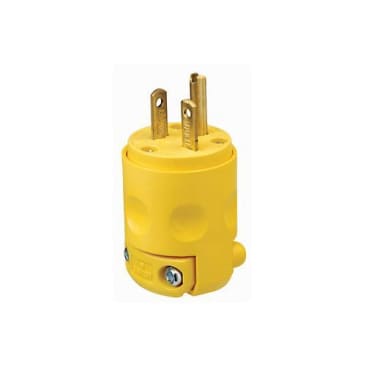

LEVITON 620PV 20A 250V 2-POLE 3-WIRE DEAD FRONT PLUG YELLOW

MFR Part #: 620PV
SKU #: 0778074
Brand: Leviton®
UPC: 078477842553
Leviton® 620PV Cable Mount Grounding Straight Blade Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
2 Years
Commercial and Outdoor Cords Applications
NOM 057 | CSA C22.2 No. 42 | CSA File No. LR406 | UL 498 | UL File No. E13393

Leviton® Straight Blade Plug, Cable Mount Grounding, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA 6-20P, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. They are also ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Product Details

Leviton® Straight Blade Plug, Cable Mount Grounding, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA 6-20P, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, PVC, Yellow, 1.54 in Dia x 2.77 in H

Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. They are also ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Attributes

Amperage Rating: 20 A
Country Of Origin: Mexico
Voltage Rating: 250 VAC
Color: Yellow
Cord Diameter: 0.245 to 0.7 in
Dimensions: 1.54 in Dia x 2.77 in H
Material: PVC
NEMA Rating: NEMA 6-20P
Number of Poles: 2
Number of Wires: 3
Temperature Rating: -40 to 60 deg C
Type: Cable Mount Grounding

Features

  • Triple drive standard head screws
  • NEMA configuration number and rating molded on face of device for easy identification
  • Rubber body is dirt and moisture resistant
  • Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
  • Husk and module keyed for easy alignment during wiring
  • Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
  • Motor base inlet accepts #10 AWG maximum copper or copper clad wire
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • 18 to 12 AWG terminal accommodation

Resources

Catalog
Specification Sheet
