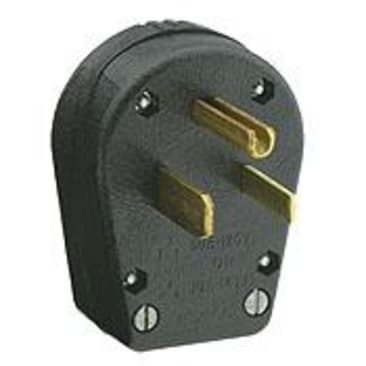

LEVITON 931-E 30/50A 250V VINYL ANGLE PLUG
Product Details
Attributes
Features
Resources
Leviton® Straight Blade Plug, Angled Cable Mount Grounding, 250 VAC, 30/50 A, 2 Pole, 3 Wires, NEMA 6-30P/6-50P, Commercial Grade, 0.63 to 1.05 in Cord Dia, -40 to 60 deg C, Thermoplastic, Black, 3.49 in H x 2.56 in W x 1.44 in D
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. They are also ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
- Tough thermoplastic shell for long life
- Shell and bottom are hinged in front for ease of assembly
- Solid brass blades with color coded terminals simplify wiring
- Each dual combination plug supplied with 30 A blades and flat 50 A blade
- Interchangeable blades eliminate need for stocking different devices
- Built-in rejection feature prevents closure if blades are incorrectly positioned
- Wiring stripping gauge molded into plug cover
- Zinc plated steel assembly screws and solid brass blade and contacts
- 14 to 6 AWG terminal accommodation
Product Details
Leviton® Straight Blade Plug, Angled Cable Mount Grounding, 250 VAC, 30/50 A, 2 Pole, 3 Wires, NEMA 6-30P/6-50P, Commercial Grade, 0.63 to 1.05 in Cord Dia, -40 to 60 deg C, Thermoplastic, Black, 3.49 in H x 2.56 in W x 1.44 in D
Leviton® offers a large selection of 15, 20, 30 and 50 A commercial grade straight blade plugs and connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse resistant. They are also ideal for indoor and outdoor use. Our EPTR rubber backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep slotted, backed out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Attributes
Features
- Tough thermoplastic shell for long life
- Shell and bottom are hinged in front for ease of assembly
- Solid brass blades with color coded terminals simplify wiring
- Each dual combination plug supplied with 30 A blades and flat 50 A blade
- Interchangeable blades eliminate need for stocking different devices
- Built-in rejection feature prevents closure if blades are incorrectly positioned
- Wiring stripping gauge molded into plug cover
- Zinc plated steel assembly screws and solid brass blade and contacts
- 14 to 6 AWG terminal accommodation
