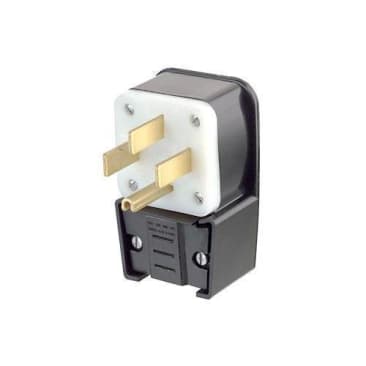

LEVITON 9452-P Image 1

LEVITON 9452-P 50A 125/250A 3-POLE 4-WIRE NYLON ANGLE PLUG EBONY

MFR Part #: 9452-P
SKU #: 0777135
Brand: Leviton®
UPC: 078477809969
Leviton® 9452-P Angled Cable Mount Grounding Straight Blade Plug, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Black
10 years
Industrial Applications
ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. 152105 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Leviton® 9452-P Straight Blade Plug, Angled Cable Mount Grounding, 125/250 VAC, 50 A, 3 hp, 3 Pole, 4 Wires, NEMA 14-50P NEMA Rating, Industrial Grade, 5/8 to 1-3/8 in Diameter Cord, -40 to 60 deg C, Nylon, Black, 4.37 in H x 2.76 in W x 1.89 in D Dimensions

Leviton® heavy duty industrial power plugs and connectors offer superior performance, long lasting reliability and features that are backed by a 10 years warranty. Available in many NEMA configurations, youll be sure to find the right device for your needs.

Product Details

Leviton® 9452-P Straight Blade Plug, Angled Cable Mount Grounding, 125/250 VAC, 50 A, 3 hp, 3 Pole, 4 Wires, NEMA 14-50P NEMA Rating, Industrial Grade, 5/8 to 1-3/8 in Diameter Cord, -40 to 60 deg C, Nylon, Black, 4.37 in H x 2.76 in W x 1.89 in D Dimensions

Leviton® heavy duty industrial power plugs and connectors offer superior performance, long lasting reliability and features that are backed by a 10 years warranty. Available in many NEMA configurations, youll be sure to find the right device for your needs.

Attributes

Amperage Rating: 50 A
Country Of Origin: Mexico
Voltage Rating: 125/250 VAC
Color: Black
Cord Diameter: 5/8 to 1-3/8 in
Dimensions: 4.37 in H x 2.76 in W x 1.89 in D
Grade: Industrial
Horsepower: 3 hp
Material: Nylon
NEMA Rating: NEMA 14-50P
Number of Poles: 3
Number of Wires: 4
Temperature Rating: -40 to 60 deg C
Type: Angled Cable Mount Grounding

Features

  • Rugged cord clamp for secure cable grip accommodates cord diameters from 5/8 to 1-3/8 in and does not tear conductor jacket
  • Made of tough, heavy duty nylon for long service life
  • Devices feature heavy sectioned dead front right angle
  • Pressure clamp terminal design
  • Terminals accept up to #4 AWG stranded conductor
  • Solid brass blades for maximum conductivity
  • 10 to 4 AWG terminal accommodation
  • Super tough nylon body
