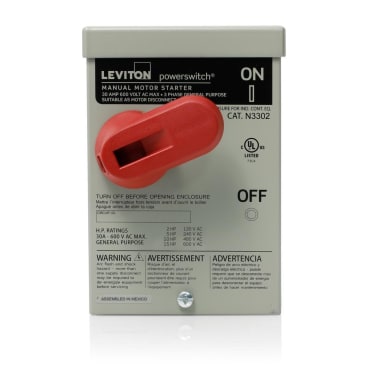

LEVITON N3302-DS 30A 600V 2-POLE MANUAL MOTOR CONTROLLER GREY
Product Details
Attributes
Features
Resources
Leviton® AC Motor Starter Switch, Grounded Manual, 600 VAC, 30 A, 15 hp Power, DPST Contact Configuration, 2 Pole, Pistol Grip Toggle Actuator, Back/Side Wired/Screw Connection, NEMA 3R Enclosure, 6000 Cycles Operating Cycles, Polyester, Gray, Environmental Conditions: -40 to 60 deg C Operating Temperature, 6.15 in H x 4.26 in W x 5.42 in D Dimensions
The power switch® line of industrial grade ac manual motor controllers provide safe, reliable control of a variety of motor loads. Suitable for use as motor disconnect, these switches are available for both 1 and 3-phase applications, with a continuous current rating at voltages up to 600 VAC and maximum horsepower ratings of 30 hp.
- All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
Product Details
Leviton® AC Motor Starter Switch, Grounded Manual, 600 VAC, 30 A, 15 hp Power, DPST Contact Configuration, 2 Pole, Pistol Grip Toggle Actuator, Back/Side Wired/Screw Connection, NEMA 3R Enclosure, 6000 Cycles Operating Cycles, Polyester, Gray, Environmental Conditions: -40 to 60 deg C Operating Temperature, 6.15 in H x 4.26 in W x 5.42 in D Dimensions
The power switch® line of industrial grade ac manual motor controllers provide safe, reliable control of a variety of motor loads. Suitable for use as motor disconnect, these switches are available for both 1 and 3-phase applications, with a continuous current rating at voltages up to 600 VAC and maximum horsepower ratings of 30 hp.
Attributes
Features
- All molded parts are thermoplastic to resist impact, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
