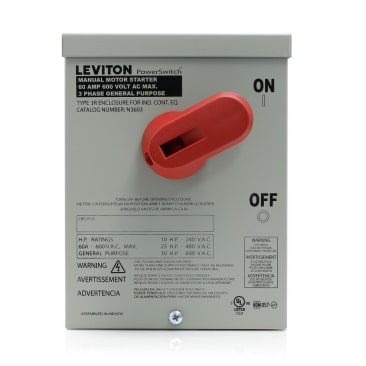

LEVITON N3603 60A 600V 3-POLE INDUSTRIAL MANUAL MOTOR CONTROLLER GREY
Product Details
Attributes
Features
Resources
Leviton®, N3603, AC Manual Motor Starting Switch, Non-Grounding, 600 VAC, 60 A, 30 hp Power, 3 Pole, TP Action, Toggle Actuator, Back and Side Wired Connection, NEMA 3R Enclosure, Threaded Mounting, 6000 Cycles Operating Cycles, Steel, Gray, Environmental Conditions: -40 to 65 deg C Operating Temperature, UL 94 V-2 Flammability Rating, 6.3 in W x 4.3 in D x 8.1 in H Dimensions
Leviton® industrial grade AC manual motor starter switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both 1 and 3-phase applications. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
- All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
- Positive contact design and cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- Multiple termination design accepts back and side wiring, terminal clamps or ring terminals
- Oversized #10 triple drive terminal screws provide greater torque and resist backing out from vibration
- Insulating barrier between terminals provide isolation from each phase
- Large toggle provides positive actuation, even with gloved hand
- AC manual motor starting switch
- 3-phase
- Metal black enclosure
- Zinc plated steel, triple combination terminal screw
- Suitable as motor disconnect
- 10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 VAC power rating
- Cam driven mechanism enhances fast make/slow break
- Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
Product Details
Leviton®, N3603, AC Manual Motor Starting Switch, Non-Grounding, 600 VAC, 60 A, 30 hp Power, 3 Pole, TP Action, Toggle Actuator, Back and Side Wired Connection, NEMA 3R Enclosure, Threaded Mounting, 6000 Cycles Operating Cycles, Steel, Gray, Environmental Conditions: -40 to 65 deg C Operating Temperature, UL 94 V-2 Flammability Rating, 6.3 in W x 4.3 in D x 8.1 in H Dimensions
Leviton® industrial grade AC manual motor starter switches provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of bottling lines, pumping machines, air compressors and other heavy manufacturing equipment. These motor controllers are available for both 1 and 3-phase applications. Leviton® uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Attributes
Features
- All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
- Positive contact design and cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- Multiple termination design accepts back and side wiring, terminal clamps or ring terminals
- Oversized #10 triple drive terminal screws provide greater torque and resist backing out from vibration
- Insulating barrier between terminals provide isolation from each phase
- Large toggle provides positive actuation, even with gloved hand
- AC manual motor starting switch
- 3-phase
- Metal black enclosure
- Zinc plated steel, triple combination terminal screw
- Suitable as motor disconnect
- 10 hp at 240 VAC, 25 hp at 480 VAC, 30 hp at 600 VAC power rating
- Cam driven mechanism enhances fast make/slow break
- Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
