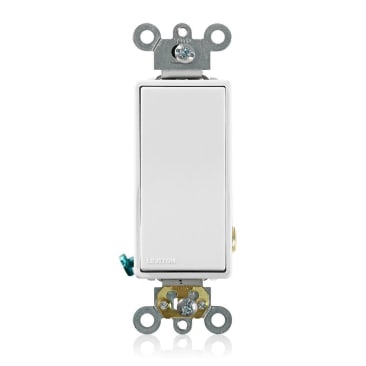

LEVITON 5621-2W Image 1

LEVITON 5621-2W DECORA 20A 125/277V 1-POLE BACK & SIDE WIRED ROCKER SWITCH WHITE

MFR Part #: 5621-2W
SKU #: 0772299
Brand: Leviton®
UPC: 078477052662
Leviton® 5621-2W Self-Grounding AC Quiet Switch, 120/277 VAC, 20 A, 1 hp, 2 hp Power Rating
10 years Limited
Commercial Applications
ANSI C73 | CSA File No. LR3413 | CSA C22.2 No. 111 File No. 152105 | Federal Specification WS896E File No. E7458 | NEMA WD1/WD6 | NOM 057 | UL 20 | UL94 V-2 Flammability Rating

Leviton®, 5621-2W, AC Quiet Switch, Self-Grounding, 120/277 VAC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 VAC Contact, 1 Pole, Maintained/Momentary Action, Rocker Actuator, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D Dimensions

Decora Plus™ devices combine designer styling with all the benefits of rugged commercial grade construction. The robust product offering includes single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Product Details

Leviton®, 5621-2W, AC Quiet Switch, Self-Grounding, 120/277 VAC, 20 A, 1 hp, 2 hp Power, 20 A at 120/277 VAC Contact, 1 Pole, Maintained/Momentary Action, Rocker Actuator, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 46 in H x 1.76 in W x 1.6 in D Dimensions

Decora Plus™ devices combine designer styling with all the benefits of rugged commercial grade construction. The robust product offering includes single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Attributes

Amperage Rating: 20 A
Country Of Origin: Mexico
Number of Poles: 1
Voltage Rating: 120/277 VAC
Action: Maintained/Momentary
Actuator: Rocker
Color: White
Contact Rating: 20 A at 120/277 VAC
Dimensions: 46 in H x 1.76 in W x 1.6 in D
Environmental Conditions: -40 to 120 deg C Operating Temperature
Material: Thermoplastic
Mounting: Surface
Operating Cycles: 50000 Cycles
Power Rating: 1 hp, 2 hp
Terminal Type: Back/Side Wire
Type: Self-Grounding

Features

  • Full rated current capacity with tungsten, fluorescent or resistive loads
  • Motor capacity is 80% of switch rating
  • Back and side wiring terminals accept both solid and stranded wire for easy installation
  • New architecturally styled smooth action concave rocker
  • Heavy duty impact resistant thermoplastic construction for long service life in commercial applications
  • Two ground connection options a green grounding screw and a self-grounding clip
  • Engineered for fine tolerances and top performance
  • Decora® plus switches feature impact resistant thermoplastic construction for long service life
