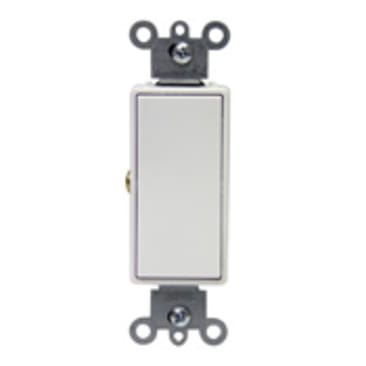

LEVITON 5691-CW DECORA+ 15A 347V 1-POLE COMMERCIAL ROCKER SWITCH WHITE
MFR Part #:Â 5691-CW
SKU #:Â 1028812
Brand: Leviton®
UPC:Â 068679180652
Decora® Plus 5691-CW Self-Grounding AC Quiet Switch, 347 VAC, 15 A
10 Years Limited
Commercial Applications
UL File No. E-7458 | CSA File No. LR-3413 | NOM 057 | Federal Specification WS-896
Product Details
Attributes
Features
Resources
Decora® Plus AC Quiet Switch, Self-Grounding, 347 VAC, 15 A, 15 A at 347 VAC Contact, 1 Pole, Quiet Action, Rocker Actuator, Wall Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating, 4.31 in H x 1.3 in W x 1.6 in D Dimensions
Amperage Rating:
15 A
Country Of Origin:
Mexico
Number of Poles:
1
Voltage Rating:
347 VAC
Action:
Quiet
Actuator:
Rocker
Color:
White
Contact Rating:
15 A at 347 VAC
Dimensions:
4.31 in H x 1.3 in W x 1.6 in D
Environmental Conditions:
-40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating
Material:
Thermoplastic
Mounting:
Wall
Operating Cycles:
50000 Cycles
Terminal Type:
Back/Side Wire
Type:
Self-Grounding
- New architecturally styled smooth action concave rocker
- Heavy duty impact resistant thermoplastic construction for long service life in commercial applications
- Full rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Wrap-around heavy gauge strap with locking tabs for added strength
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- Green grounding screw
Product Details
Decora® Plus AC Quiet Switch, Self-Grounding, 347 VAC, 15 A, 15 A at 347 VAC Contact, 1 Pole, Quiet Action, Rocker Actuator, Wall Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating, 4.31 in H x 1.3 in W x 1.6 in D Dimensions
Attributes
Amperage Rating:Â 15 A
Country Of Origin:Â Mexico
Number of Poles:Â 1
Voltage Rating:Â 347 VAC
Action:Â Quiet
Actuator:Â Rocker
Color:Â White
Contact Rating:Â 15 A at 347 VAC
Dimensions:Â 4.31 in H x 1.3 in W x 1.6 in D
Environmental Conditions:Â -40 to 120 deg C Operating Temperature, UL 94 V-2 Flammability Rating
Material:Â Thermoplastic
Mounting:Â Wall
Operating Cycles:Â 50000 Cycles
Terminal Type:Â Back/Side Wire
Type:Â Self-Grounding
Features
- New architecturally styled smooth action concave rocker
- Heavy duty impact resistant thermoplastic construction for long service life in commercial applications
- Full rated current capacity with tungsten, fluorescent or resistive loads
- Motor capacity is 80% of switch rating
- Wrap-around heavy gauge strap with locking tabs for added strength
- Back and side wiring terminals accept both solid and stranded wire for easy installation
- Green grounding screw
