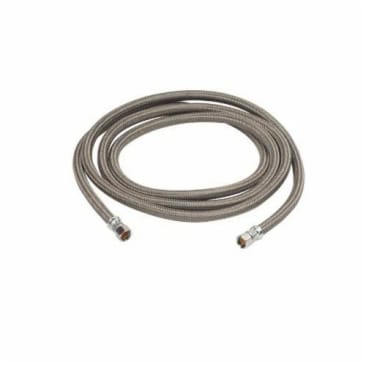

3/8COMP X 3/8COMP X 20 SS LAV FLEX CONN

MFR Part #: B1-20DW F
SKU #: 1013366
Brand: BrassCraft®
UPC: 773638272001
BrassCraft® Speedi Plumb® PLUS B1-20DW F B1-DW Flexible Lead Free Braided Water Dishwasher Connector, 3/8 in Nominal, Compression End Style, 20 in L, 125 psi Working, Polymer, Import
Residential and Commercial
PROP65: This product can expose you to one or more chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

BrassCraft® Speedi Plumb® PLUS Lead Free Braided Water Dishwasher Connector, Flexible, Series: B1-DW, 3/8 in Nominal, Compression End Style, 0.3 in ID, 0.55 in OD, 20 in Length, 125 psi Working, 40 to 140 deg F, Polymer, Import

BrassCraft® Speedi Plumb® PLUS 3/8 in Compression inlet x 3/8 in Compression outlet flexible braided polymer water connector. Used to connect the water supply to your dishwasher, this connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements. The braided polymer fibers are designed to bend freely without kinking or crimping.

Product Details

BrassCraft® Speedi Plumb® PLUS Lead Free Braided Water Dishwasher Connector, Flexible, Series: B1-DW, 3/8 in Nominal, Compression End Style, 0.3 in ID, 0.55 in OD, 20 in Length, 125 psi Working, 40 to 140 deg F, Polymer, Import

BrassCraft® Speedi Plumb® PLUS 3/8 in Compression inlet x 3/8 in Compression outlet flexible braided polymer water connector. Used to connect the water supply to your dishwasher, this connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. On the inside, our tough PVC tubing resists attack by chlorine, chloramines and other corrosive elements. The braided polymer fibers are designed to bend freely without kinking or crimping.

Attributes

Connection Size: 3/8 x 3/8 in
Connection Type: Compression x Compression
Country Of Origin: China
Length: 20 in
Domestic/Import: Import
End Style: Compression
Inside Diameter: .3 in
Material: Polymer
Nominal Size: 3/8 in
Outside Diameter: .55 in
Series: B1-DW
Temperature Rating: 40 to 140 deg F
Type: Flexible
Working Pressure: 125 psi

Features

  • For use in potable water distribution systems in accessible locations only
  • Bends freely, without kinking or crimping, installation is easier, especially in cramped quarters
  • External corrosion resistance to common household, tile and glass cleaners
  • Internal corrosion resistance to harsh water conditions
  • For use indoor
  • 180 deg F intermittent temperature
  • F: individually flag labeled
