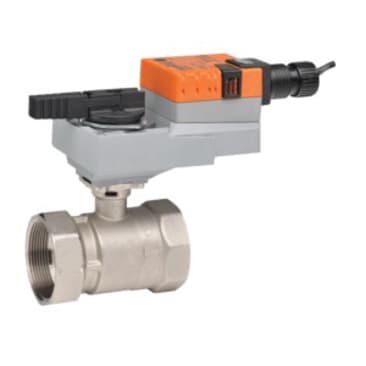

BELIMO B229+LRB24-SR 1-1/4IN 2-WAY NON-SPRING RTN ACTUATOR
Product Details
Attributes
Features
Resources
BELIMO® Characterized Control Valve With Actuator, B2 Series, 1-1/4 in Nominal, FNPT Connection, Number of Ways/Position: 2-Way, 600 psi Body, 200 psi Close-Off, 10 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel Ball Trim, EPDM Stem Packing, TEFZEL® Disc, Teflon PTFE Seat, EPDM Seal, Forged Brass, Finish: Nickel-Plated, 3 ft 18 AWG Plenum Cable With 1/2 in Conduit Connector Electrical Connection, 24 VAC +/-20% at 50/60 Hz, 24 VDC +/-10%, 1.5 W Running, 0.4 W Holding, NEMA 2, IP42 Enclosure, 60% Glycol, Chilled, Hot Water Service, 0 to 250 deg F Water, -22 to 122 deg F Ambient, 9.4 in L x 3.78 in W x 7-1/4 in H
- Non fail safe actuator
- Modulating control
- Equal percentage flow characteristics
- 75 deg controllable flow range
- 0% for a to AB leakage
- Maintenance-free service
- Electronic throughout 0 to 90 deg rotation overload protection
- 2 to 10 VDC, 4 to 20 mA with ZG-R01 (500 Ohm, 1/4 W resistor) operating range Y
- 100 kOhm for 2 to 10 VDC (0.1 mA), 500 Ohm for 4 to 20 mA input impedance
- 2 to 10 VDC feedback output
- 90 deg angle of rotation
- Reversible with built-in switch direction of rotation (motor)
- Position indication integrated into handle
- External pushbutton manual override
- 90 s running time
- Less than 35 dB noise level (motor)
Product Details
BELIMO® Characterized Control Valve With Actuator, B2 Series, 1-1/4 in Nominal, FNPT Connection, Number of Ways/Position: 2-Way, 600 psi Body, 200 psi Close-Off, 10 Cv Flow Coefficient (Cv), Stainless Steel Stem, Stainless Steel Ball Trim, EPDM Stem Packing, TEFZEL® Disc, Teflon PTFE Seat, EPDM Seal, Forged Brass, Finish: Nickel-Plated, 3 ft 18 AWG Plenum Cable With 1/2 in Conduit Connector Electrical Connection, 24 VAC +/-20% at 50/60 Hz, 24 VDC +/-10%, 1.5 W Running, 0.4 W Holding, NEMA 2, IP42 Enclosure, 60% Glycol, Chilled, Hot Water Service, 0 to 250 deg F Water, -22 to 122 deg F Ambient, 9.4 in L x 3.78 in W x 7-1/4 in H
Attributes
Features
- Non fail safe actuator
- Modulating control
- Equal percentage flow characteristics
- 75 deg controllable flow range
- 0% for a to AB leakage
- Maintenance-free service
- Electronic throughout 0 to 90 deg rotation overload protection
- 2 to 10 VDC, 4 to 20 mA with ZG-R01 (500 Ohm, 1/4 W resistor) operating range Y
- 100 kOhm for 2 to 10 VDC (0.1 mA), 500 Ohm for 4 to 20 mA input impedance
- 2 to 10 VDC feedback output
- 90 deg angle of rotation
- Reversible with built-in switch direction of rotation (motor)
- Position indication integrated into handle
- External pushbutton manual override
- 90 s running time
- Less than 35 dB noise level (motor)
