CONBRACO 6110201 Image 1
CONBRACO 6110201 Image 2
content loaded
CONBRACO 6110201 Image 1

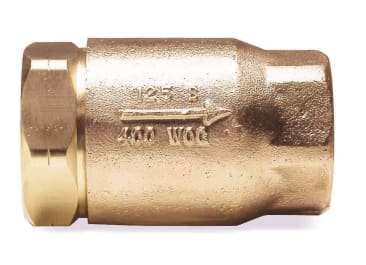

CONBRACO 6110201 3/8 BRONZE BALL-CONE CHECK VALVE

MFR Part #: 6110201
SKU #: 1059720
Brand: Apollo™ Conbraco
UPC: 670750631870
Apollo™ 6110201 61-100 Standard In-Line Ball Cone Check Valve, 3/8 in Nominal, FNPT End Style, 1.21 gpm Flow Rate, Bronze Body, Domestic
5 Years
Broad Range of Applications, Including Saturated Steam and Chemical Service
ARRA Compliant|ASTM B16 Stem|CRN 0C11218.5C|UNS C84400 Body|PROP65: Cancer and Reproductive Harm

Apollo™, 6110201, In-Line Ball Cone Check Valve, Standard, Series: 61-100, 3/8 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, 1.21 gpm Flow Rate, Media: Liquid/Steam, Spring-Loaded Latch-Lock Handle Actuator, 2.12 in Inlet to Outlet Length, Bronze Body, Brass/Stainless Steel Trim, 1.12 in H Dimensions, Domestic

The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

Product Details

Apollo™, 6110201, In-Line Ball Cone Check Valve, Standard, Series: 61-100, 3/8 in Nominal, FNPT End Style, 400 psi CWP Pressure, 406 deg F, 1.21 gpm Flow Rate, Media: Liquid/Steam, Spring-Loaded Latch-Lock Handle Actuator, 2.12 in Inlet to Outlet Length, Bronze Body, Brass/Stainless Steel Trim, 1.12 in H Dimensions, Domestic

The Apollo™ CVB Ball Cone® check valves offer reliable protection against reverse flow and exceptional resistance to chemicals and corrosion using proven ASTM quality materials made in the USA.

Attributes

Body Material: Bronze
Country Of Origin: US
End Style: FNPT
Nominal Size: 3/8 in
Pressure Rating: 400 psi CWP
Actuator Type: Spring-Loaded Latch-Lock Handle
Dimensions: 1.12 in H
Domestic/Import: Domestic
Flow Rate: 1.21 gpm
Inlet to Outlet Length: 2.12 in
Media: Liquid/Steam
Series: 61-100
Temperature Rating: 406 deg F
Trim Material: Brass/Stainless Steel
Type: Standard

Features

  • Tight shut-off with liquid media
  • Flow straight-through design efficiency
  • RPTFE ball cone for chemical resistance
  • 100% factory tested
  • 0.5 psig cracking pressure

Resources

Owners/User Manual
Specification Sheet
