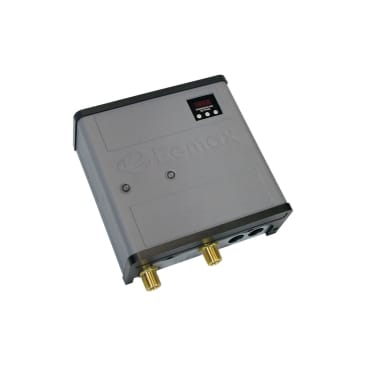

EEMAX PA014240TC 15 KW 240V 1PH THRM CTRL PROADVNTG
MFR Part #: PA014240TC
SKU #: 1224913
Brand: Eemax™
UPC: 91654904363
Eemax™ PA014240TC ProAdvantage™ Dual Module Electric Tankless Water Heater, 240 VAC, 15000 W, 1 ph, 3/4 in MNPT Water, 63 A, Commercial/Residential/Dual: Commercial
1 Year Limited For Parts/5 Years Limited on Leaks
EX770 Element, EX284E-309-240 Board, (2) EX309-240 Board, EX255B Relay/Contactor, EX278A Eco and EX18 Triac
Any remote sink that does not have hot water, commercial builds such as restaurants and service stations, concession stands and food service locations, modular buildings, office and trailers, schools and all other public buildings, shopping mall and retail outlets
CAN/CSA-C22.2 64/88 | ANSI/NSF 372 by WQA | cETLus Listed | CSA Certified | cUL Listed | ETL Listed | Patent #4762980/4960976 | UL 499 Listed
Product Details
Attributes
Features
Resources
Eemax™ Electric Tankless Water Heater, Dual Module, Series: ProAdvantage™, 240 VAC, 63 A, 15000 W, 1 ph, 3 gpm, 3/4 in MNPT Water Connection, Nickel Chrome Heating Element, Energy Factor: 0.99, (2) 8 AWG Wire, Wall Mount, 1 gpm at 102 deg F Rise Recovery, 25 to 150 psi, 100 to 140 deg F, ASME Yes/No: No, Slate Gray, 11 in W x 4 in D x 10-1/2 in H, Commercial Commercial/Residential/Dual, Domestic
Amperage Rating:
63 A
Country Of Origin:
US
Phase:
1
Power Rating:
15000 W
Voltage Rating:
240 VAC
ASME Yes/No:
No
Color:
Slate Gray
Commercial/Residential/Dual:
Commercial
Dimensions:
11 in W x 4 in D x 10-1/2 in H
Domestic/Import:
Domestic
Energy Factor:
.99
Flow Rate:
3 gpm
Heating Capacity:
15 kW
Heating Element:
Nickel Chrome
Mounting Type:
Wall
Pressure Rating:
25 to 150 psi
Recovery Rate:
1 gpm at 102 deg F Rise
Series:
ProAdvantage™
Temperature Rating:
100 to 140 deg F
Type:
Dual Module
Water Connection:
3/4 in MNPT
Water Heater Type:
Electric
Wire Size:
(2) 8 AWG
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - no storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Select models supplied with a PCA flow restricting aerator - ensures proper volume and effective flow
- Easy installation - Simple compression fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- 0.7 gpm turn-on
- Replaceable cartridge bare wire element
- Bottom plumbing configuration
- Pre-heated or cold water inlet
- Electric tankless water heater with digital display and controls
- Digital microprocessing temperature control
Product Details
Eemax™ Electric Tankless Water Heater, Dual Module, Series: ProAdvantage™, 240 VAC, 63 A, 15000 W, 1 ph, 3 gpm, 3/4 in MNPT Water Connection, Nickel Chrome Heating Element, Energy Factor: 0.99, (2) 8 AWG Wire, Wall Mount, 1 gpm at 102 deg F Rise Recovery, 25 to 150 psi, 100 to 140 deg F, ASME Yes/No: No, Slate Gray, 11 in W x 4 in D x 10-1/2 in H, Commercial Commercial/Residential/Dual, Domestic
Attributes
Amperage Rating: 63 A
Country Of Origin: US
Phase: 1
Power Rating: 15000 W
Voltage Rating: 240 VAC
ASME Yes/No: No
Color: Slate Gray
Commercial/Residential/Dual: Commercial
Dimensions: 11 in W x 4 in D x 10-1/2 in H
Domestic/Import: Domestic
Energy Factor: .99
Flow Rate: 3 gpm
Heating Capacity: 15 kW
Heating Element: Nickel Chrome
Mounting Type: Wall
Pressure Rating: 25 to 150 psi
Recovery Rate: 1 gpm at 102 deg F Rise
Series: ProAdvantage™
Temperature Rating: 100 to 140 deg F
Type: Dual Module
Water Connection: 3/4 in MNPT
Water Heater Type: Electric
Wire Size: (2) 8 AWG
Features
- On demand hot water - No delay
- Cut energy waste - Flow switch activates heater only when water is running, no standby heat loss
- Endless hot water - no storage capacity to deplete
- Reduces installation cost and material - No temperature and pressure valve required
- Select models supplied with a PCA flow restricting aerator - ensures proper volume and effective flow
- Easy installation - Simple compression fittings that require no soldering, unit mounts directly to the wall with common hardware
- Prevents legionella bacteria growth
- Reduces calcification and sedimentation
- The wetted surface of this product contacted by water contains less than 0.25% lead and meets ANSI/NSF 372
- 0.7 gpm turn-on
- Replaceable cartridge bare wire element
- Bottom plumbing configuration
- Pre-heated or cold water inlet
- Electric tankless water heater with digital display and controls
- Digital microprocessing temperature control
