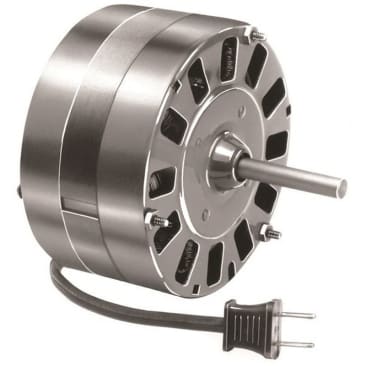

FASCO FASD1037 1/20 115 1050 OAO CWSE MOTOR
MFR Part #:Â FASD1037
SKU #:Â 1181012
Brand: Fasco®
UPC:Â 400008708432
Fasco® FASD1037 Replacement Motor, 115 VAC, 1.95 A, 1/20 hp, 1050 rpm Speed, 0.04 kW, 1 ph -Phase, 60 Hz, 42 Frame
Product Details
Attributes
Resources
Fasco® Replacement Motor, 115 VAC, 1.95 A, 1/20 hp, 1050 rpm, 0.04 kW, 1 ph Phase, 60 Hz, OAO Motor Enclosure, 42 Frame, 1/2 in Dia x 2-1/8 in L Shaft, Clockwise Shaft End Rotation, 1 Speed, Flat Shaft Type, Sleeve Bearing, Extended Studs Mounting, Air Over, B Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, 40 deg C, 5 in Dia x 4.99 in L
Amperage Rating:
1.95 A
Dimensions:
5 in Dia x 4.99 in L
Frequency Rating:
60 Hz
Number of Poles:
6
Power Rating:
.04 kW
Temperature Rating:
40 deg C
Voltage Rating:
115 VAC
Bearing Type:
Sleeve
Duty Type:
Air Over
Frame Size:
42
HP Rating:
1/20 hp
Insulation Class:
B
Motor Enclosure Type:
OAO
Mounting Type:
Extended Studs
Number of Speeds:
1
Phase:
1 ph
Rotation Type:
Clockwise Shaft End
Service Factor:
1
Shaft Size:
1/2 in Dia x 2-1/8 in L
Shaft Type:
Flat
Speed Rating:
1050 rpm
Starting Method:
Across the Line
Product Details
Fasco® Replacement Motor, 115 VAC, 1.95 A, 1/20 hp, 1050 rpm, 0.04 kW, 1 ph Phase, 60 Hz, OAO Motor Enclosure, 42 Frame, 1/2 in Dia x 2-1/8 in L Shaft, Clockwise Shaft End Rotation, 1 Speed, Flat Shaft Type, Sleeve Bearing, Extended Studs Mounting, Air Over, B Insulation Class, 6 Poles, 1 Service Factor, Across the Line Starting Method, 40 deg C, 5 in Dia x 4.99 in L
Attributes
Amperage Rating:Â 1.95 A
Dimensions:Â 5 in Dia x 4.99 in L
Frequency Rating:Â 60 Hz
Number of Poles:Â 6
Power Rating:Â .04 kW
Temperature Rating:Â 40 deg C
Voltage Rating:Â 115 VAC
Bearing Type:Â Sleeve
Duty Type:Â Air Over
Frame Size:Â 42
HP Rating:Â 1/20 hp
Insulation Class:Â B
Motor Enclosure Type:Â OAO
Mounting Type:Â Extended Studs
Number of Speeds:Â 1
Phase:Â 1 ph
Rotation Type:Â Clockwise Shaft End
Service Factor:Â 1
Shaft Size:Â 1/2 in Dia x 2-1/8 in L
Shaft Type:Â Flat
Speed Rating:Â 1050 rpm
Starting Method:Â Across the Line
